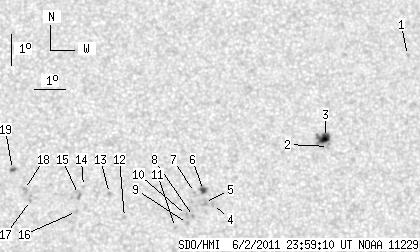

SDO HMI 2011-06-02 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.49 | 49.34 | 5.50 | 25.75 | 17.05 | 41.23 | 3.99 | 348.34 | 0.3146 | -161.7 | -206.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.96 | 48.08 | 10.84 | 334.34 | 0.4072 | 590.0 | 534.7 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 18.01 | 45.32 | 8.08 | 337.15 | 0.3456 | -587.0 | -552.5 | |
| 5.97 | 13.29 | 3.15 | 7.02 | 18.30 | 45.24 | 8.00 | 337.69 | 0.3494 | -924.8 | -787.9 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 16.15 | 41.55 | 4.30 | 345.87 | 0.2966 | -910.0 | -730.4 | |
| 0.00 | 3.89 | 0.00 | 2.02 | 16.22 | 41.29 | 4.05 | 346.72 | 0.2966 | -895.0 | -777.2 | |
| 2.44 | 4.70 | 1.27 | 2.44 | 16.60 | 41.27 | 4.03 | 347.09 | 0.3027 | -937.4 | -732.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.53 | 40.98 | 3.74 | 347.94 | 0.3006 | -705.0 | -534.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.77 | 40.94 | 3.70 | 347.51 | 0.2880 | -960.0 | -798.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 15.55 | 40.74 | 3.50 | 347.98 | 0.2837 | -988.0 | -714.4 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 15.80 | 40.72 | 3.47 | 348.26 | 0.2878 | -782.0 | -722.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.42 | 40.36 | 3.12 | 349.16 | 0.2803 | -914.0 | -716.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.74 | 38.76 | 1.51 | 354.80 | 0.2818 | 849.0 | 596.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.50 | 38.29 | 1.04 | 356.58 | 0.2940 | 889.0 | 549.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.72 | 37.46 | 0.22 | 359.29 | 0.2972 | 720.0 | 502.7 | |
| 0.00 | 3.98 | 0.00 | 2.06 | 16.47 | 37.30 | 0.06 | 359.80 | 0.2929 | 890.0 | 745.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 15.93 | 37.24 | 0.00 | 0.00 | 0.2839 | 791.0 | 625.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 16.28 | 35.78 | -1.46 | 4.85 | 0.2908 | 905.0 | 752.3 | |
| 0.00 | 3.07 | 0.00 | 1.59 | 16.63 | 35.59 | -1.65 | 5.37 | 0.2969 | 742.0 | 715.2 | |
| 2.08 | 2.17 | 1.08 | 1.13 | 17.27 | 35.20 | -2.04 | 6.36 | 0.3081 | 918.8 | 486.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
