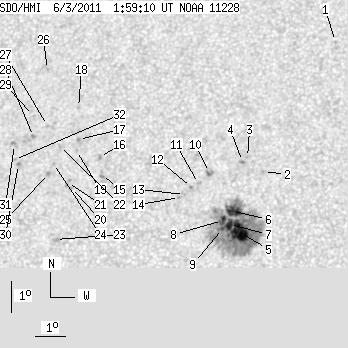

SDO HMI 2011-06-03 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.68 | 259.46 | 22.93 | 140.17 | 17.11 | 20.31 | -15.83 | 40.68 | 0.4005 | -400.6 | -359.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 22.69 | 23.91 | -12.23 | 26.43 | 0.4408 | -689.0 | -568.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 18.46 | 21.88 | -14.26 | 35.78 | 0.4012 | -725.0 | -574.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 18.91 | 21.31 | -14.83 | 36.14 | 0.4122 | -651.0 | -565.0 | |
| 0.00 | 2.17 | 0.00 | 1.18 | 18.78 | 21.16 | -14.98 | 36.61 | 0.4121 | -936.0 | -778.9 | |
| 21.34 | 214.44 | 11.44 | 115.10 | 16.51 | 21.25 | -14.89 | 40.18 | 0.3834 | -1308.1 | -490.5 | |
| 10.49 | -5.00 | 5.65 | -5.00 | 17.18 | 21.00 | -15.14 | 39.48 | 0.3941 | -997.1 | 999999 | |
| 4.88 | -5.00 | 2.62 | -5.00 | 16.76 | 20.90 | -15.24 | 40.37 | 0.3901 | -1095.2 | 999999 | |
| 4.43 | -5.00 | 2.39 | -5.00 | 16.89 | 20.66 | -15.48 | 40.58 | 0.3942 | -875.0 | 999999 | |
| 1.54 | -5.00 | 0.83 | -5.00 | 16.63 | 20.68 | -15.46 | 40.99 | 0.3909 | -831.8 | 999999 | |
| 0.00 | 3.89 | 0.00 | 2.12 | 18.43 | 20.09 | -16.05 | 39.02 | 0.4183 | -886.0 | -804.8 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 18.08 | 19.76 | -16.38 | 40.16 | 0.4175 | -568.0 | -540.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.95 | 19.54 | -16.60 | 40.73 | 0.4183 | -830.0 | -705.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.72 | 19.32 | -16.81 | 41.46 | 0.4179 | -836.0 | -599.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 17.63 | 19.17 | -16.97 | 41.87 | 0.4185 | -716.0 | -603.6 | |
| 0.00 | 3.07 | 0.00 | 1.71 | 18.37 | 16.46 | -19.68 | 44.74 | 0.4559 | -752.0 | -681.3 | |
| 0.00 | 2.62 | 0.00 | 1.46 | 18.92 | 16.32 | -19.82 | 44.04 | 0.4632 | 849.0 | 670.1 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 19.51 | 15.53 | -20.61 | 44.21 | 0.4778 | 858.0 | 748.6 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 20.55 | 15.38 | -20.76 | 42.82 | 0.4902 | 730.0 | 573.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 19.15 | 15.50 | -20.63 | 44.79 | 0.4744 | 778.0 | 602.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 17.96 | 15.48 | -20.65 | 46.75 | 0.4626 | 922.0 | 726.3 | |
| 0.00 | 2.17 | 0.00 | 1.21 | 18.12 | 15.33 | -20.81 | 46.69 | 0.4659 | 720.0 | 657.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 19.28 | 14.90 | -21.24 | 45.38 | 0.4823 | 777.0 | 578.8 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 16.30 | 15.13 | -21.00 | 50.06 | 0.4505 | 860.0 | 756.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.73 | 14.77 | -21.37 | 46.42 | 0.4783 | 907.0 | 746.3 | |
| 0.00 | 2.08 | 0.00 | 1.17 | 18.41 | 14.64 | -21.50 | 47.10 | 0.4766 | 901.0 | 777.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 21.79 | 14.11 | -22.03 | 42.63 | 0.5163 | 886.0 | 612.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 19.96 | 14.39 | -21.75 | 44.98 | 0.4948 | 731.0 | 587.8 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 19.61 | 13.95 | -22.19 | 46.06 | 0.4960 | 1045.0 | 797.3 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 20.29 | 13.85 | -22.29 | 45.15 | 0.5038 | 676.0 | 559.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 18.71 | 13.56 | -22.58 | 47.96 | 0.4916 | 846.0 | 755.9 | |
| 0.00 | 2.89 | 0.00 | 1.65 | 19.35 | 13.33 | -22.81 | 47.22 | 0.5004 | 755.0 | 540.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 18.87 | 13.40 | -22.74 | 47.90 | 0.4950 | 597.0 | 526.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
