SDO HMI 2011-06-03 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.60 | 27.84 | 3.32 | 17.06 | 19.58 | 5.77 | -30.37 | 54.27 | 0.5878 | 57.9 | 100.9 | |
|
previous
or next observation for the same group /

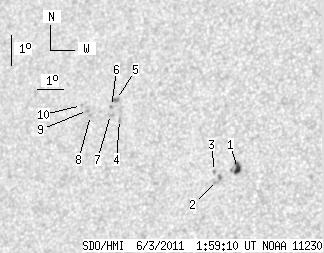

back to the solar disc SDO HMI 2011-06-03 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.60 | 9.31 | 3.32 | 5.52 | 18.69 | 8.48 | -27.66 | 53.33 | 0.5503 | -880.1 | -601.3 | |
| 0.00 | 4.07 | 0.00 | 2.42 | 18.31 | 7.82 | -28.31 | 54.51 | 0.5551 | -760.0 | -704.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 18.60 | 7.66 | -28.48 | 54.21 | 0.5592 | -646.0 | -482.9 | |
| 0.00 | 1.81 | 0.00 | 1.14 | 20.30 | 3.75 | -32.39 | 54.87 | 0.6165 | 817.0 | 610.8 | |
| 0.00 | 3.34 | 0.00 | 2.12 | 20.96 | 3.47 | -32.67 | 54.15 | 0.6240 | 774.0 | 711.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 20.73 | 3.34 | -32.80 | 54.57 | 0.6240 | 897.0 | 677.9 | |
| 0.00 | 2.71 | 0.00 | 1.71 | 20.47 | 3.36 | -32.78 | 54.92 | 0.6220 | 380.0 | 366.1 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 20.44 | 2.59 | -33.55 | 55.52 | 0.6305 | 704.0 | 595.8 | |
| 0.00 | 1.72 | 0.00 | 1.10 | 20.60 | 2.43 | -33.71 | 55.40 | 0.6333 | 779.0 | 587.5 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 20.77 | 2.15 | -33.98 | 55.37 | 0.6374 | 690.0 | 573.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
