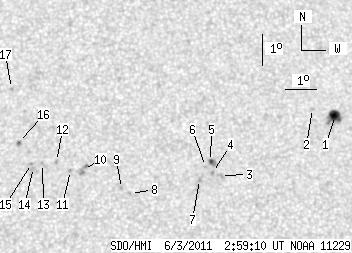

SDO HMI 2011-06-03 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.12 | 45.67 | 6.93 | 23.91 | 17.20 | 40.98 | 5.39 | 344.37 | 0.3228 | -100.6 | -20.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.95 | 15.55 | 5.28 | 8.25 | 18.20 | 45.36 | 9.77 | 333.25 | 0.3597 | -975.6 | -794.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.42 | 44.62 | 9.04 | 335.27 | 0.3578 | -695.0 | -508.6 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 16.28 | 41.58 | 5.99 | 340.82 | 0.3063 | -582.0 | -627.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 16.37 | 41.33 | 5.74 | 341.67 | 0.3064 | -1159.0 | -915.5 | |
| 1.81 | 4.61 | 0.94 | 2.40 | 16.72 | 41.27 | 5.68 | 342.20 | 0.3116 | -820.0 | -790.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 16.56 | 41.11 | 5.52 | 342.52 | 0.3083 | -751.0 | -576.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 16.15 | 40.91 | 5.32 | 342.70 | 0.3007 | -864.0 | -744.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.71 | 38.71 | 3.12 | 349.34 | 0.2846 | 855.0 | 701.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.86 | 38.43 | 2.84 | 350.38 | 0.2864 | 931.0 | 714.9 | |
| 0.00 | 5.52 | 0.00 | 2.86 | 16.47 | 37.23 | 1.64 | 354.61 | 0.2938 | 565.0 | 792.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.43 | 36.82 | 1.23 | 355.95 | 0.2927 | 780.0 | 632.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.72 | 36.37 | 0.79 | 357.45 | 0.2970 | 796.0 | 613.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.66 | 35.93 | 0.34 | 358.89 | 0.2957 | 775.0 | 613.7 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 16.53 | 35.64 | 0.06 | 359.81 | 0.2935 | 930.0 | 723.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.66 | 35.58 | -0.01 | 0.02 | 0.2957 | 813.0 | 606.2 | |
| 1.36 | 1.72 | 0.71 | 0.89 | 17.33 | 35.17 | -0.42 | 1.32 | 0.3069 | 958.9 | 669.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 19.06 | 34.94 | -0.65 | 1.84 | 0.3358 | 741.0 | 611.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
