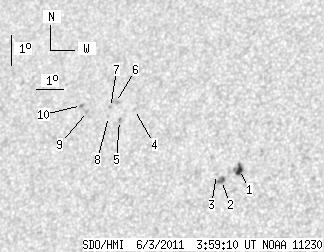

SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.88 | 26.05 | 2.86 | 15.71 | 19.49 | 6.09 | -28.95 | 53.21 | 0.5708 | 55.1 | -1.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.88 | 9.67 | 2.86 | 5.67 | 18.71 | 8.50 | -26.54 | 52.27 | 0.5372 | -917.1 | -615.0 | |
| 0.00 | 4.52 | 0.00 | 2.66 | 18.36 | 7.91 | -27.13 | 53.38 | 0.5413 | -934.0 | -810.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.55 | 7.69 | -27.34 | 53.28 | 0.5454 | -674.0 | -491.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 20.67 | 4.24 | -30.80 | 53.13 | 0.6011 | 704.0 | 524.2 | |
| 0.00 | 1.72 | 0.00 | 1.07 | 20.32 | 3.75 | -31.29 | 54.03 | 0.6041 | 821.0 | 696.2 | |
| 0.00 | 2.44 | 0.00 | 1.53 | 20.90 | 3.46 | -31.58 | 53.42 | 0.6115 | 805.0 | 627.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 20.74 | 3.31 | -31.73 | 53.76 | 0.6120 | 803.0 | 720.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 20.45 | 3.30 | -31.74 | 54.19 | 0.6101 | 384.0 | 426.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 20.62 | 2.45 | -32.59 | 54.59 | 0.6207 | 619.0 | 597.3 | |
| 0.00 | 1.90 | 0.00 | 1.20 | 20.81 | 2.17 | -32.87 | 54.52 | 0.6252 | 749.0 | 619.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
