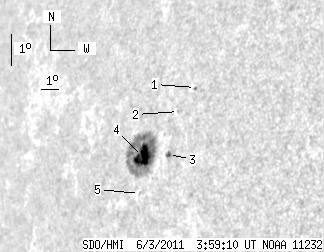

SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.07 | 103.17 | 19.68 | 96.87 | 9.11 | 337.51 | -57.53 | 78.96 | 0.8508 | -695.5 | -161.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.96 | 11.20 | 339.84 | -55.20 | 76.14 | 0.8318 | 442.0 | 341.2 | |
| 0.00 | 1.09 | 0.00 | 0.98 | 10.46 | 339.11 | -55.93 | 77.14 | 0.8376 | -460.0 | -405.3 | |
| 2.35 | 2.80 | 2.12 | 2.53 | 9.13 | 338.90 | -56.14 | 78.75 | 0.8381 | -658.6 | -563.6 | |
| 18.72 | 97.38 | 17.56 | 91.64 | 9.08 | 337.43 | -57.61 | 79.00 | 0.8515 | -795.3 | -160.6 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 7.94 | 337.53 | -57.51 | 80.33 | 0.8495 | -393.0 | -335.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
