SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.54 | 46.85 | 9.19 | 24.60 | -18.00 | 26.50 | -8.54 | 155.09 | 0.3352 | 447.7 | 196.4 | |
|
previous
or next observation for the same group /

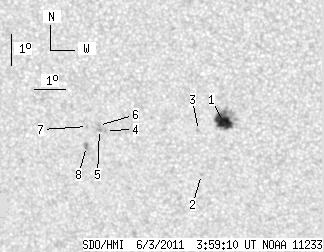

back to the solar disc SDO HMI 2011-06-03 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.54 | 36.17 | 9.19 | 18.94 | -17.90 | 27.34 | -7.70 | 156.97 | 0.3273 | 1087.6 | 593.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -19.60 | 26.54 | -8.49 | 157.02 | 0.3579 | 834.0 | 681.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.19 | 26.52 | -8.52 | 155.21 | 0.3371 | 664.0 | 532.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.19 | 23.50 | -11.54 | 148.04 | 0.3607 | -853.0 | -662.6 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -18.16 | 23.30 | -11.74 | 147.57 | 0.3620 | -974.0 | -781.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -18.03 | 23.28 | -11.76 | 147.32 | 0.3605 | -937.0 | -712.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.06 | 22.92 | -12.12 | 146.58 | 0.3641 | -585.0 | -505.2 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -18.70 | 22.84 | -12.20 | 147.42 | 0.3733 | -896.0 | -725.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
