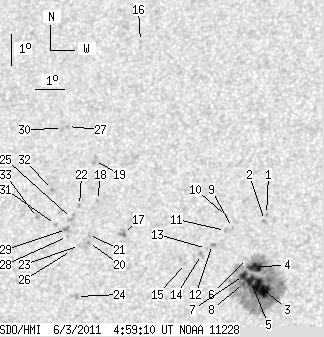

SDO HMI 2011-06-03 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.58 | 264.78 | 22.18 | 141.99 | 17.15 | 20.20 | -14.29 | 37.79 | 0.3850 | -394.1 | -351.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.68 | 18.90 | 21.25 | -13.24 | 33.21 | 0.3973 | -884.0 | -663.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 18.70 | 21.20 | -13.29 | 33.59 | 0.3953 | -1045.0 | -873.4 | |
| 20.25 | 217.56 | 10.78 | 115.92 | 16.53 | 21.26 | -13.23 | 36.93 | 0.3666 | -1333.4 | -496.7 | |
| 10.22 | -3.00 | 5.46 | -3.00 | 17.20 | 20.99 | -13.50 | 36.37 | 0.3778 | -993.4 | 999999 | |
| 5.06 | -3.00 | 2.70 | -3.00 | 16.78 | 20.89 | -13.60 | 37.26 | 0.3735 | -1109.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.49 | 20.70 | -13.79 | 36.45 | 0.3842 | -51.0 | -57.1 | |
| 4.79 | -3.00 | 2.56 | -3.00 | 16.94 | 20.65 | -13.84 | 37.47 | 0.3779 | -892.6 | 999999 | |
| 0.90 | -3.00 | 0.48 | -3.00 | 16.69 | 20.66 | -13.82 | 37.86 | 0.3745 | -836.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 18.48 | 20.16 | -14.33 | 35.91 | 0.4019 | -913.0 | -611.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 18.84 | 19.93 | -14.56 | 35.79 | 0.4085 | -653.0 | -502.0 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 18.39 | 19.94 | -14.55 | 36.47 | 0.4028 | -707.0 | -581.3 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 17.94 | 19.54 | -14.94 | 37.90 | 0.4011 | -775.0 | -710.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 17.81 | 19.36 | -15.13 | 38.45 | 0.4014 | -818.0 | -681.0 | |
| 0.00 | 2.62 | 0.00 | 1.42 | 17.62 | 19.21 | -15.28 | 39.03 | 0.4005 | -846.0 | -687.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 17.33 | 18.70 | -15.79 | 40.41 | 0.4023 | -560.0 | -432.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 24.60 | 16.31 | -18.18 | 33.84 | 0.5113 | 743.0 | 551.6 | |
| 0.36 | 4.52 | 0.20 | 2.49 | 18.27 | 16.54 | -17.95 | 42.40 | 0.4358 | -953.0 | -668.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 19.36 | 15.54 | -18.95 | 42.15 | 0.4585 | 864.0 | 780.2 | |
| 0.00 | 1.99 | 0.00 | 1.12 | 20.66 | 15.27 | -19.22 | 40.57 | 0.4755 | 839.0 | 707.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 18.01 | 15.39 | -19.10 | 44.54 | 0.4455 | 1088.0 | 923.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 18.27 | 15.36 | -19.13 | 44.16 | 0.4485 | 721.0 | 627.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 19.21 | 14.94 | -19.55 | 43.25 | 0.4630 | 779.0 | 599.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.92 | 15.09 | -19.39 | 45.12 | 0.4477 | 900.0 | 622.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.29 | 15.17 | -19.32 | 47.84 | 0.4302 | 968.0 | 724.7 | |
| 0.00 | 4.07 | 0.00 | 2.27 | 18.79 | 14.72 | -19.77 | 44.23 | 0.4610 | 894.0 | 613.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 17.76 | 14.84 | -19.65 | 45.75 | 0.4489 | 880.0 | 603.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 21.78 | 14.18 | -20.31 | 40.47 | 0.4987 | 884.0 | 604.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 18.21 | 14.65 | -19.84 | 45.26 | 0.4557 | 772.0 | 524.7 | |
| 0.00 | 4.97 | 0.00 | 2.77 | 18.43 | 14.59 | -19.90 | 44.98 | 0.4587 | 1033.0 | 759.5 | |
| 0.00 | 1.90 | 0.00 | 1.08 | 21.72 | 14.01 | -20.48 | 40.78 | 0.4996 | 601.0 | 400.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 18.59 | 14.20 | -20.29 | 45.26 | 0.4647 | 822.0 | 682.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 19.73 | 13.95 | -20.54 | 43.81 | 0.4791 | 963.0 | 807.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 18.82 | 13.55 | -20.94 | 45.75 | 0.4742 | 789.0 | 616.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
