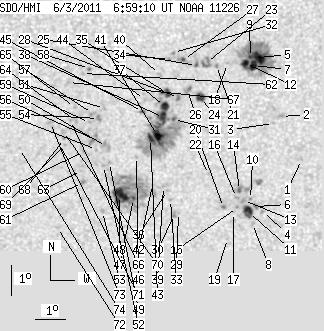

SDO HMI 2011-06-03 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.22 | 489.60 | 45.35 | 260.87 | -21.66 | 36.18 | 2.79 | 187.31 | 0.3678 | 260.2 | 204.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | -22.48 | 40.51 | 7.12 | 196.95 | 0.3941 | 857.0 | 596.8 | |
| 0.00 | 3.80 | 0.00 | 2.02 | -21.07 | 39.78 | 6.39 | 196.41 | 0.3691 | 887.0 | 706.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -21.30 | 39.53 | 6.14 | 195.62 | 0.3715 | 707.0 | 520.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -24.20 | 39.29 | 5.90 | 193.10 | 0.4155 | 649.0 | 466.3 | |
| 8.41 | 87.44 | 4.42 | 45.97 | -19.17 | 38.96 | 5.57 | 195.92 | 0.3355 | 1415.1 | 566.5 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -24.03 | 39.05 | 5.66 | 192.67 | 0.4121 | 989.0 | 821.0 | |
| 5.70 | -5.00 | 3.00 | -5.00 | -19.43 | 38.81 | 5.41 | 195.29 | 0.3389 | 1132.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -24.60 | 38.98 | 5.58 | 192.19 | 0.4206 | 635.0 | 469.4 | |
| 1.72 | -5.00 | 0.90 | -5.00 | -19.17 | 38.70 | 5.31 | 195.22 | 0.3344 | 1355.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.80 | 38.87 | 5.48 | 192.42 | 0.4079 | 886.0 | 661.5 | |
| 8.50 | 9.86 | 4.62 | 5.36 | -24.23 | 38.83 | 5.43 | 192.07 | 0.4144 | 908.0 | 771.1 | |
| 3.89 | -5.00 | 2.04 | -5.00 | -19.36 | 38.55 | 5.15 | 194.64 | 0.3368 | 1120.7 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.37 | -23.83 | 38.64 | 5.25 | 191.90 | 0.4076 | 963.0 | 854.1 | |
| 2.08 | 15.01 | 1.12 | 8.11 | -23.50 | 38.50 | 5.10 | 191.76 | 0.4020 | 1034.9 | 747.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -24.07 | 38.45 | 5.06 | 191.35 | 0.4106 | 1101.0 | 858.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -23.73 | 38.40 | 5.01 | 191.43 | 0.4053 | 921.0 | 745.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -24.23 | 38.32 | 4.93 | 190.99 | 0.4128 | 622.0 | 455.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.36 | 37.96 | 4.57 | 193.04 | 0.3345 | 872.0 | 618.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -25.10 | 38.16 | 4.76 | 190.21 | 0.4259 | 510.0 | 436.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -24.07 | 37.98 | 4.59 | 190.33 | 0.4092 | 940.0 | 810.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -19.43 | 37.61 | 4.22 | 192.02 | 0.3342 | 804.0 | 679.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -22.97 | 37.45 | 4.05 | 189.64 | 0.3905 | 852.0 | 612.4 | |
| 0.00 | 8.23 | 0.00 | 4.32 | -19.33 | 37.28 | 3.89 | 191.18 | 0.3316 | 773.0 | 917.1 | |
| 6.06 | 7.23 | 3.20 | 3.82 | -20.46 | 37.12 | 3.72 | 190.07 | 0.3493 | 963.6 | 794.0 | |
| 1.18 | 2.80 | 0.62 | 1.47 | -19.43 | 36.96 | 3.57 | 190.23 | 0.3322 | 897.2 | 861.9 | |
| 0.00 | 4.70 | 0.00 | 2.48 | -20.23 | 36.69 | 3.30 | 189.05 | 0.3445 | 1159.0 | 863.3 | |
| 1.54 | 4.43 | 0.81 | 2.32 | -19.23 | 36.54 | 3.15 | 189.13 | 0.3279 | 1008.3 | 798.0 | |
| 0.00 | 2.98 | 0.00 | 1.58 | -20.46 | 36.40 | 3.01 | 188.17 | 0.3475 | 1070.0 | 842.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -24.23 | 36.48 | 3.09 | 186.95 | 0.4083 | -603.0 | -530.0 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -24.30 | 36.35 | 2.96 | 186.63 | 0.4091 | -869.0 | -674.9 | |
| 1.09 | 139.44 | 0.58 | 74.16 | -21.17 | 36.25 | 2.86 | 187.48 | 0.3587 | 722.1 | 405.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -19.01 | 36.21 | 2.82 | 188.31 | 0.3234 | 945.0 | 715.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -23.80 | 36.21 | 2.81 | 186.46 | 0.4009 | -951.0 | -667.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.23 | 36.09 | 2.69 | 187.84 | 0.3268 | 891.0 | 697.8 | |
| 4.07 | 6.42 | 2.15 | 3.39 | -20.33 | 36.04 | 2.65 | 187.25 | 0.3446 | 1086.0 | 807.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.50 | 36.10 | 2.71 | 186.31 | 0.3959 | 680.0 | 529.8 | |
| 5.34 | -31.00 | 2.82 | -31.00 | -20.75 | 35.95 | 2.56 | 186.85 | 0.3513 | 1116.6 | 999999 | |
| 5.79 | -31.00 | 3.07 | -31.00 | -21.11 | 35.93 | 2.53 | 186.66 | 0.3570 | 1129.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -23.37 | 35.97 | 2.57 | 186.04 | 0.3936 | 748.0 | 572.7 | |
| 0.00 | 2.26 | 0.00 | 1.19 | -19.72 | 35.77 | 2.38 | 186.75 | 0.3340 | 760.0 | 615.4 | |
| 6.87 | -31.00 | 3.66 | -31.00 | -21.70 | 35.74 | 2.35 | 185.99 | 0.3662 | 1180.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -23.30 | 35.60 | 2.21 | 185.20 | 0.3919 | 687.0 | 526.4 | |
| 3.71 | -31.00 | 1.97 | -31.00 | -21.79 | 35.51 | 2.12 | 185.38 | 0.3674 | 949.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.52 | 35.30 | 1.90 | 185.18 | 0.3464 | 176.0 | 205.9 | |
| 1.63 | 2.17 | 0.86 | 1.15 | -20.91 | 35.24 | 1.84 | 184.91 | 0.3527 | 567.4 | 603.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -22.38 | 35.06 | 1.67 | 184.11 | 0.3764 | 577.0 | 482.6 | |
| 1.54 | 109.96 | 0.83 | 59.26 | -23.77 | 34.98 | 1.58 | 183.65 | 0.3986 | -714.7 | -220.8 | |
| 16.10 | -47.00 | 8.68 | -47.00 | -23.67 | 34.51 | 1.12 | 182.59 | 0.3966 | -1096.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.58 | 34.17 | 0.78 | 181.91 | 0.3788 | -894.0 | -682.7 | |
| 0.00 | 6.60 | 0.00 | 3.52 | -22.06 | 34.07 | 0.68 | 181.70 | 0.3702 | -343.0 | -314.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.82 | 34.00 | 0.61 | 181.63 | 0.3500 | -935.0 | -757.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.68 | 33.97 | 0.58 | 181.42 | 0.3803 | -838.0 | -726.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -24.20 | 33.95 | 0.55 | 181.26 | 0.4048 | -859.0 | -682.5 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -21.14 | 33.81 | 0.41 | 181.09 | 0.3552 | -1003.0 | -889.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -22.15 | 33.74 | 0.35 | 180.87 | 0.3717 | -906.0 | -698.9 | |
| 0.00 | 6.24 | 0.00 | 3.32 | -21.83 | 33.68 | 0.28 | 180.72 | 0.3664 | -824.0 | -856.1 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -20.98 | 33.61 | 0.22 | 180.58 | 0.3525 | -951.0 | -749.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.52 | 33.51 | 0.12 | 180.34 | 0.3285 | -920.0 | -792.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.27 | 33.51 | 0.12 | 180.31 | 0.3573 | -889.0 | -743.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -22.22 | 33.32 | -0.08 | 179.81 | 0.3727 | -939.0 | -701.9 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -23.24 | 33.28 | -0.11 | 179.74 | 0.3893 | -925.0 | -783.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -19.68 | 33.29 | -0.11 | 179.69 | 0.3312 | -842.0 | -601.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -22.84 | 33.25 | -0.14 | 179.65 | 0.3829 | -551.0 | -438.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.24 | 33.09 | -0.31 | 179.20 | 0.3568 | -947.0 | -734.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -20.78 | 33.02 | -0.37 | 179.01 | 0.3493 | -965.0 | -720.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.21 | 32.89 | -0.50 | 178.68 | 0.3563 | -865.0 | -591.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.98 | 32.83 | -0.56 | 178.42 | 0.3361 | -914.0 | -739.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -21.79 | 32.69 | -0.70 | 178.22 | 0.3660 | -900.0 | -775.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -21.99 | 32.69 | -0.70 | 178.23 | 0.3692 | -738.0 | -675.5 | |
| 0.00 | 2.89 | 0.00 | 1.54 | -21.57 | 32.66 | -0.73 | 178.11 | 0.3623 | -768.0 | -731.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.96 | 32.53 | -0.86 | 177.82 | 0.3687 | -723.0 | -533.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -24.73 | 32.44 | -0.95 | 177.91 | 0.4135 | -586.0 | -392.9 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -21.27 | 32.24 | -1.15 | 176.98 | 0.3578 | -908.0 | -719.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -22.12 | 31.21 | -2.18 | 174.56 | 0.3728 | -840.0 | -625.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
