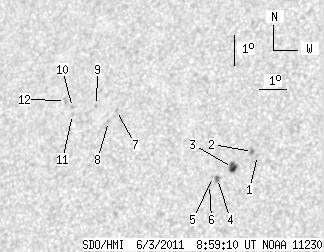

SDO HMI 2011-06-03 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 23.61 | 3.68 | 13.84 | 19.45 | 6.45 | -25.85 | 50.32 | 0.5346 | -190.6 | -44.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | 19.14 | 9.37 | -22.93 | 47.76 | 0.4992 | -741.0 | -601.9 | |
| 0.00 | 2.44 | 0.00 | 1.40 | 19.27 | 9.17 | -23.13 | 47.78 | 0.5026 | -795.0 | -669.8 | |
| 5.61 | 6.60 | 3.21 | 3.78 | 18.76 | 8.55 | -23.75 | 49.31 | 0.5050 | -889.2 | -699.4 | |
| 0.81 | 2.71 | 0.47 | 1.56 | 18.41 | 8.07 | -24.23 | 50.40 | 0.5073 | -958.9 | -783.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 18.47 | 7.92 | -24.38 | 50.46 | 0.5096 | -318.0 | -389.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.21 | 7.82 | -24.48 | 50.98 | 0.5086 | -758.0 | -618.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 20.62 | 4.04 | -28.25 | 51.04 | 0.5719 | 667.0 | 602.7 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 20.26 | 3.82 | -28.48 | 51.77 | 0.5716 | 644.0 | 553.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 20.79 | 3.27 | -29.03 | 51.50 | 0.5819 | 696.0 | 508.2 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 20.73 | 2.38 | -29.91 | 52.35 | 0.5913 | 549.0 | 443.4 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 20.50 | 2.43 | -29.87 | 52.64 | 0.5890 | 709.0 | 534.4 | |
| 0.00 | 2.35 | 0.00 | 1.45 | 20.96 | 2.07 | -30.23 | 52.28 | 0.5965 | 813.0 | 636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
