SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.74 | 471.75 | 45.78 | 251.75 | -21.59 | 36.11 | 4.36 | 191.26 | 0.3711 | 188.1 | 231.5 | |
|
previous
or next observation for the same group /

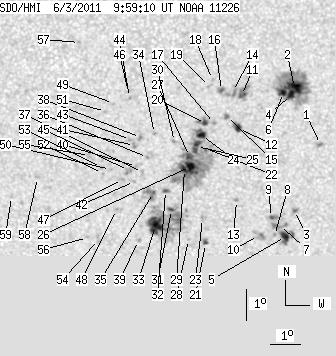

back to the solar disc SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.60 | -21.06 | 39.85 | 8.10 | 200.44 | 0.3779 | 866.0 | 657.7 | |
| 10.22 | 89.33 | 5.39 | 47.11 | -19.22 | 38.91 | 7.16 | 200.05 | 0.3446 | 1373.0 | 575.1 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -23.22 | 39.10 | 7.35 | 196.88 | 0.4068 | 939.0 | 766.7 | |
| 4.52 | -2.00 | 2.39 | -2.00 | -19.44 | 38.82 | 7.07 | 199.59 | 0.3475 | 1065.3 | 999999 | |
| 5.70 | 12.93 | 3.11 | 7.05 | -24.08 | 38.85 | 7.10 | 195.70 | 0.4187 | 997.6 | 673.4 | |
| 2.89 | -2.00 | 1.53 | -2.00 | -19.38 | 38.56 | 6.81 | 198.98 | 0.3451 | 1153.2 | 999999 | |
| 0.00 | 6.51 | 0.00 | 3.54 | -23.72 | 38.63 | 6.88 | 195.50 | 0.4122 | 740.0 | 842.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -24.05 | 38.48 | 6.73 | 194.95 | 0.4167 | 916.0 | 780.7 | |
| 1.54 | 3.89 | 0.83 | 2.11 | -23.45 | 38.35 | 6.60 | 195.08 | 0.4070 | 982.5 | 929.3 | |
| 0.00 | 7.60 | 0.00 | 4.13 | -24.05 | 37.94 | 6.19 | 193.81 | 0.4146 | 682.0 | 510.0 | |
| 3.44 | 10.49 | 1.81 | 5.52 | -19.47 | 37.20 | 5.45 | 195.33 | 0.3401 | 1010.4 | 865.1 | |
| 3.80 | 6.78 | 2.01 | 3.59 | -20.54 | 37.14 | 5.39 | 194.33 | 0.3566 | 854.6 | 877.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.89 | 37.16 | 5.41 | 192.80 | 0.3937 | 988.0 | 806.6 | |
| 0.00 | 6.87 | 0.00 | 3.61 | -19.35 | 36.90 | 5.15 | 194.64 | 0.3368 | 511.0 | 816.0 | |
| 0.00 | 2.98 | 0.00 | 1.58 | -20.15 | 36.73 | 4.98 | 193.57 | 0.3489 | 1045.0 | 849.8 | |
| 1.72 | 3.44 | 0.90 | 1.81 | -19.31 | 36.55 | 4.79 | 193.69 | 0.3348 | 1035.8 | 906.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -20.38 | 36.35 | 4.60 | 192.42 | 0.3511 | 1024.0 | 845.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.96 | 36.24 | 4.49 | 193.12 | 0.3280 | 897.0 | 680.7 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -19.19 | 36.15 | 4.40 | 192.70 | 0.3313 | 861.0 | 688.5 | |
| 2.35 | 6.78 | 1.24 | 3.58 | -20.38 | 36.06 | 4.31 | 191.65 | 0.3501 | 1154.1 | 832.8 | |
| 1.54 | 2.89 | 0.84 | 1.57 | -24.32 | 36.18 | 4.43 | 189.86 | 0.4129 | -818.1 | -833.6 | |
| 0.54 | 143.41 | 0.29 | 76.41 | -21.19 | 36.08 | 4.33 | 191.23 | 0.3632 | 485.0 | 414.1 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -23.49 | 36.05 | 4.30 | 189.96 | 0.3995 | 782.0 | 674.2 | |
| 4.07 | -22.00 | 2.16 | -22.00 | -20.77 | 35.94 | 4.19 | 191.11 | 0.3559 | 1112.9 | 999999 | |
| 7.41 | -22.00 | 3.94 | -22.00 | -21.12 | 35.78 | 4.03 | 190.51 | 0.3612 | 1042.2 | 999999 | |
| 5.52 | -22.00 | 2.94 | -22.00 | -21.78 | 35.61 | 3.85 | 189.73 | 0.3711 | 1202.3 | 999999 | |
| 4.34 | -22.00 | 2.31 | -22.00 | -21.45 | 35.56 | 3.81 | 189.78 | 0.3658 | 1117.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.18 | 35.61 | 3.86 | 188.66 | 0.4094 | -665.0 | -546.7 | |
| 2.53 | -22.00 | 1.35 | -22.00 | -21.88 | 35.41 | 3.66 | 189.20 | 0.3722 | 1025.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -20.96 | 35.06 | 3.31 | 188.74 | 0.3566 | 613.0 | 442.2 | |
| 1.54 | 91.05 | 0.83 | 49.16 | -23.19 | 35.02 | 3.26 | 187.70 | 0.3923 | -476.6 | -220.3 | |
| 1.99 | 2.62 | 1.07 | 1.40 | -22.56 | 34.80 | 3.05 | 187.43 | 0.3818 | 799.7 | 842.1 | |
| 18.90 | -31.00 | 10.21 | -31.00 | -23.72 | 34.50 | 2.75 | 186.33 | 0.3997 | -1055.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -20.70 | 34.41 | 2.65 | 187.12 | 0.3509 | -859.0 | -698.6 | |
| 1.18 | 11.03 | 0.63 | 5.91 | -22.63 | 34.41 | 2.66 | 186.46 | 0.3821 | 415.3 | -362.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -21.48 | 34.19 | 2.44 | 186.29 | 0.3632 | -807.0 | -657.8 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.97 | 34.03 | 2.28 | 185.74 | 0.3709 | -227.0 | -227.7 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -20.83 | 33.95 | 2.20 | 185.88 | 0.3522 | -1108.0 | -846.5 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -24.22 | 33.94 | 2.19 | 184.93 | 0.4068 | -848.0 | -639.6 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -21.78 | 33.83 | 2.08 | 185.30 | 0.3674 | -649.0 | -487.6 | |
| 0.00 | 2.71 | 0.00 | 1.44 | -21.09 | 33.76 | 2.01 | 185.29 | 0.3561 | -1037.0 | -879.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.27 | 33.78 | 2.03 | 185.02 | 0.3752 | -887.0 | -618.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -20.90 | 33.63 | 1.88 | 185.00 | 0.3528 | -785.0 | -798.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -19.54 | 33.58 | 1.83 | 185.24 | 0.3304 | -902.0 | -797.6 | |
| 0.00 | 3.89 | 0.00 | 2.07 | -21.91 | 33.57 | 1.82 | 184.61 | 0.3691 | -808.0 | -837.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.35 | 33.54 | 1.79 | 185.20 | 0.3272 | -879.0 | -657.2 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -22.20 | 33.38 | 1.63 | 184.06 | 0.3737 | -942.0 | -779.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -23.19 | 33.19 | 1.44 | 183.42 | 0.3894 | -792.0 | -642.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.73 | 33.06 | 1.31 | 183.73 | 0.3329 | -790.0 | -695.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.88 | 32.98 | 1.23 | 183.13 | 0.3679 | -840.0 | -637.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.99 | 32.81 | 1.06 | 182.96 | 0.3369 | -711.0 | -540.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -22.01 | 32.72 | 0.97 | 182.45 | 0.3699 | -610.0 | -562.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.81 | 32.69 | 0.94 | 182.39 | 0.3667 | -790.0 | -607.5 | |
| 0.00 | 4.43 | 0.00 | 2.40 | -24.18 | 32.61 | 0.85 | 181.93 | 0.4049 | -635.0 | -614.1 | |
| 0.00 | 3.35 | 0.00 | 1.78 | -21.42 | 32.29 | 0.54 | 181.41 | 0.3601 | -700.0 | -657.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.12 | 32.24 | 0.49 | 181.11 | 0.4037 | -765.0 | -551.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -17.78 | 31.96 | 0.21 | 180.68 | 0.2997 | -744.0 | -459.1 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -22.14 | 30.59 | -1.16 | 177.10 | 0.3721 | -696.0 | -494.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.76 | 29.73 | -2.02 | 175.10 | 0.3832 | -684.0 | -542.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
