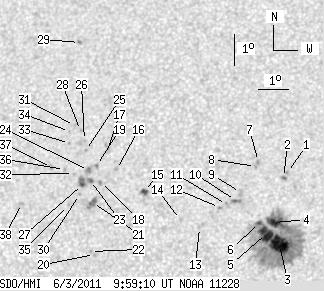

SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.91 | 301.21 | 26.42 | 160.19 | 17.26 | 19.72 | -12.03 | 32.90 | 0.3650 | -324.8 | -244.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.85 | 21.34 | -10.41 | 27.41 | 0.3732 | -870.0 | -735.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.69 | 21.22 | -10.54 | 27.89 | 0.3719 | -1042.0 | -894.2 | |
| 22.60 | 226.14 | 11.91 | 119.27 | 16.55 | 21.21 | -10.54 | 31.01 | 0.3418 | -1327.7 | -474.8 | |
| 5.70 | -3.00 | 3.01 | -3.00 | 17.25 | 21.01 | -10.74 | 30.40 | 0.3532 | -1090.1 | 999999 | |
| 13.74 | -3.00 | 7.27 | -3.00 | 16.90 | 20.77 | -10.98 | 31.48 | 0.3504 | -1029.6 | 999999 | |
| 1.72 | -3.00 | 0.91 | -3.00 | 17.25 | 20.52 | -11.23 | 31.50 | 0.3573 | -705.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 19.21 | 20.36 | -11.39 | 29.05 | 0.3857 | -839.0 | -669.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.05 | 20.27 | -11.48 | 29.45 | 0.3842 | -801.0 | -630.7 | |
| 0.00 | 3.26 | 0.00 | 1.74 | 18.21 | 19.84 | -11.91 | 31.55 | 0.3763 | -735.0 | -591.6 | |
| 1.36 | 3.98 | 0.72 | 2.12 | 17.96 | 19.70 | -12.05 | 32.24 | 0.3741 | -709.0 | -770.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 17.83 | 19.41 | -12.34 | 33.03 | 0.3749 | -801.0 | -633.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.73 | 19.19 | -12.56 | 33.64 | 0.3756 | -875.0 | -680.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 17.10 | 18.58 | -13.17 | 35.91 | 0.3729 | -752.0 | -582.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.35 | 17.94 | -13.81 | 36.77 | 0.3823 | -682.0 | -583.1 | |
| 3.16 | 4.07 | 1.71 | 2.20 | 18.25 | 16.68 | -15.07 | 37.67 | 0.4058 | -849.5 | -740.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.96 | 15.68 | -16.07 | 38.30 | 0.4242 | 855.0 | 649.3 | |
| 0.00 | 4.43 | 0.00 | 2.44 | 19.61 | 15.31 | -16.44 | 37.93 | 0.4356 | 565.0 | 422.8 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 18.54 | 15.18 | -16.57 | 39.79 | 0.4242 | 990.0 | 783.7 | |
| 0.00 | 2.17 | 0.00 | 1.19 | 19.09 | 14.99 | -16.76 | 39.23 | 0.4326 | 926.0 | 697.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.24 | 15.20 | -16.55 | 43.68 | 0.3977 | 769.0 | 644.1 | |
| 0.00 | 6.51 | 0.00 | 3.55 | 17.90 | 14.98 | -16.77 | 41.17 | 0.4189 | 951.0 | 882.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 16.34 | 15.06 | -16.69 | 43.74 | 0.4003 | 790.0 | 633.3 | |
| 0.00 | 2.53 | 0.00 | 1.39 | 18.61 | 14.84 | -16.91 | 40.24 | 0.4285 | 1020.0 | 887.4 | |
| 0.00 | 4.16 | 0.00 | 2.28 | 18.93 | 14.74 | -17.01 | 39.89 | 0.4332 | 972.0 | 746.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 19.58 | 14.57 | -17.18 | 39.17 | 0.4425 | 758.0 | 640.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 19.90 | 14.50 | -17.25 | 38.79 | 0.4470 | 716.0 | 524.5 | |
| 1.63 | 11.39 | 0.89 | 6.25 | 18.48 | 14.59 | -17.17 | 40.86 | 0.4296 | 969.9 | 844.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 20.23 | 14.33 | -17.42 | 38.58 | 0.4525 | 682.0 | 536.8 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 23.12 | 13.92 | -17.83 | 35.21 | 0.4903 | 807.0 | 645.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 18.16 | 14.52 | -17.23 | 41.49 | 0.4267 | 840.0 | 627.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 20.39 | 14.10 | -17.65 | 38.68 | 0.4565 | 598.0 | 558.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 18.84 | 14.25 | -17.51 | 40.83 | 0.4372 | 718.0 | 576.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 19.81 | 14.00 | -17.75 | 39.71 | 0.4508 | 888.0 | 784.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 20.20 | 13.96 | -17.79 | 39.20 | 0.4557 | 748.0 | 622.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.81 | 14.19 | -17.57 | 42.60 | 0.4262 | 706.0 | 562.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 18.97 | 13.93 | -17.82 | 41.12 | 0.4420 | 829.0 | 555.6 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 19.03 | 13.48 | -18.27 | 41.70 | 0.4473 | 791.0 | 600.5 | |
| 0.00 | 2.08 | 0.00 | 1.15 | 17.88 | 12.60 | -19.16 | 44.89 | 0.4443 | 152.0 | 174.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
