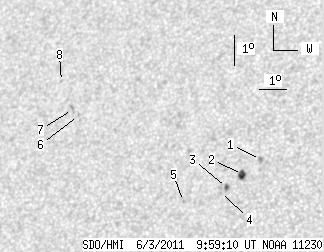

SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 17.80 | 3.62 | 10.39 | 19.44 | 6.51 | -25.24 | 49.69 | 0.5275 | -373.7 | -115.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.07 | 0.00 | 1.75 | 19.27 | 9.15 | -22.60 | 47.16 | 0.4967 | -766.0 | -667.2 | |
| 4.88 | 5.70 | 2.79 | 3.25 | 18.79 | 8.59 | -23.16 | 48.59 | 0.4984 | -898.4 | -680.8 | |
| 1.45 | 2.26 | 0.83 | 1.29 | 18.37 | 8.09 | -23.66 | 49.83 | 0.5004 | -866.5 | -883.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 18.21 | 7.91 | -23.84 | 50.29 | 0.5011 | -695.0 | -548.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 17.93 | 6.65 | -25.10 | 52.11 | 0.5135 | -737.0 | -621.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 20.73 | 2.32 | -29.43 | 51.94 | 0.5858 | 613.0 | 528.5 | |
| 0.00 | 2.89 | 0.00 | 1.77 | 20.92 | 2.06 | -29.69 | 51.88 | 0.5903 | 793.0 | 628.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 21.84 | 1.43 | -30.32 | 51.11 | 0.6042 | 423.0 | 350.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
