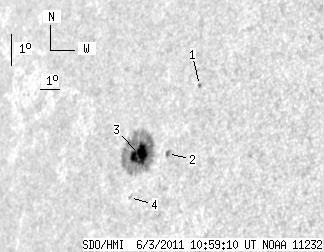

SDO HMI 2011-06-03 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.24 | 112.93 | 18.04 | 96.12 | 9.16 | 337.50 | -53.70 | 78.40 | 0.8144 | -696.7 | -187.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 1.63 | 0.37 | 1.32 | 11.26 | 339.99 | -51.21 | 75.36 | 0.7923 | 381.6 | 320.6 | |
| 0.99 | 2.89 | 0.82 | 2.38 | 9.16 | 338.87 | -52.33 | 78.18 | 0.8006 | -715.9 | -577.3 | |
| 19.80 | 107.23 | 16.85 | 91.42 | 9.14 | 337.43 | -53.77 | 78.43 | 0.8151 | -807.3 | -184.6 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 7.81 | 337.18 | -54.02 | 80.09 | 0.8161 | -294.0 | -262.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
