SDO HMI 2011-06-03 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.11 | 154.79 | 15.16 | 83.42 | -20.76 | 19.02 | -11.63 | 151.56 | 0.3973 | 1072.1 | 470.5 | |
|
previous
or next observation for the same group /

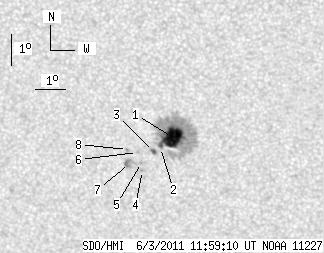

back to the solar disc SDO HMI 2011-06-03 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.04 | 137.51 | 13.49 | 74.03 | -20.66 | 19.19 | -11.46 | 151.76 | 0.3946 | 1259.5 | 439.7 | |
| 0.90 | -1.00 | 0.49 | -1.00 | -20.98 | 18.77 | -11.89 | 151.32 | 0.4024 | 541.0 | 999999 | |
| 2.17 | 3.25 | 1.18 | 1.76 | -21.11 | 18.52 | -12.13 | 151.00 | 0.4060 | 807.8 | 752.8 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -21.73 | 18.10 | -12.55 | 150.97 | 0.4177 | 827.0 | 650.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.47 | 18.09 | -12.56 | 150.62 | 0.4143 | 883.0 | 754.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.14 | 17.99 | -12.67 | 150.00 | 0.4107 | 765.0 | 576.4 | |
| 0.00 | 7.96 | 0.00 | 4.33 | -21.50 | 17.69 | -12.97 | 149.89 | 0.4179 | 704.0 | 720.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.05 | 17.66 | -12.99 | 149.24 | 0.4120 | 756.0 | 619.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
