SDO HMI 2011-06-03 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.45 | 33.88 | 9.08 | 17.68 | -18.25 | 26.86 | -3.80 | 168.49 | 0.3145 | 776.5 | 536.0 | |
|
previous
or next observation for the same group /

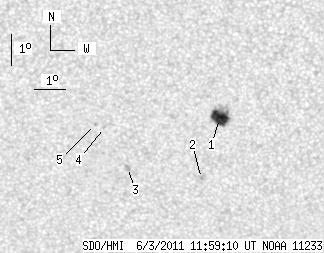

back to the solar disc SDO HMI 2011-06-03 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.45 | 27.84 | 9.08 | 14.49 | -18.03 | 27.38 | -3.27 | 169.82 | 0.3088 | 1109.8 | 723.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.95 | 26.76 | -3.90 | 169.19 | 0.3420 | 893.0 | 705.1 | |
| 0.00 | 3.25 | 0.00 | 1.72 | -19.60 | 24.37 | -6.29 | 162.58 | 0.3460 | 801.0 | 577.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.31 | 23.67 | -6.98 | 159.43 | 0.3298 | -834.0 | -628.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.22 | 23.39 | -7.26 | 158.56 | 0.3300 | -780.0 | -644.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
