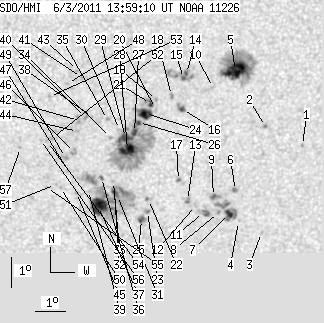

SDO HMI 2011-06-03 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.54 | 491.39 | 51.73 | 263.46 | -21.73 | 36.14 | 6.58 | 196.46 | 0.3819 | 261.3 | 258.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.69 | -21.76 | 41.14 | 11.59 | 207.13 | 0.4110 | 858.0 | 668.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -21.14 | 39.86 | 10.31 | 205.24 | 0.3932 | 864.0 | 692.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -24.63 | 40.00 | 10.45 | 201.88 | 0.4441 | 654.0 | 550.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -24.27 | 39.19 | 9.64 | 200.67 | 0.4342 | 541.0 | 441.6 | |
| 20.25 | 86.96 | 10.74 | 46.11 | -19.33 | 38.76 | 9.21 | 204.96 | 0.3594 | 1276.2 | 548.5 | |
| 0.00 | 2.62 | 0.00 | 1.43 | -23.24 | 39.01 | 9.46 | 201.26 | 0.4182 | 807.0 | 799.0 | |
| 4.25 | 20.61 | 2.33 | 11.28 | -24.00 | 38.87 | 9.31 | 200.27 | 0.4285 | 992.2 | 749.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -23.97 | 38.49 | 8.94 | 199.56 | 0.4260 | 925.0 | 803.8 | |
| 2.44 | 4.52 | 1.33 | 2.46 | -23.44 | 38.29 | 8.74 | 199.60 | 0.4171 | 979.4 | 863.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.88 | 38.07 | 8.52 | 202.68 | 0.3629 | 614.0 | 355.1 | |
| 0.00 | 6.78 | 0.00 | 3.70 | -23.97 | 37.99 | 8.44 | 198.54 | 0.4234 | 956.0 | 732.4 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -23.74 | 37.70 | 8.15 | 198.15 | 0.4185 | 736.0 | 594.5 | |
| 0.00 | 2.71 | 0.00 | 1.48 | -23.57 | 37.43 | 7.87 | 197.70 | 0.4147 | 853.0 | 751.7 | |
| 1.54 | 20.79 | 0.81 | 10.99 | -19.43 | 37.17 | 7.62 | 200.98 | 0.3506 | 1085.1 | 830.4 | |
| 1.99 | -14.00 | 1.05 | -14.00 | -19.59 | 37.08 | 7.53 | 200.58 | 0.3526 | 887.3 | 999999 | |
| 2.26 | 5.24 | 1.20 | 2.79 | -20.59 | 37.10 | 7.54 | 199.60 | 0.3679 | 867.6 | 855.2 | |
| 0.45 | 1.72 | 0.24 | 0.93 | -22.91 | 37.09 | 7.53 | 197.51 | 0.4031 | 1003.2 | 805.4 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -20.14 | 36.71 | 7.16 | 199.12 | 0.3589 | 1043.0 | 826.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -20.27 | 36.23 | 6.68 | 197.80 | 0.3584 | 1047.0 | 830.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.56 | 36.21 | 6.66 | 197.49 | 0.3628 | 426.0 | 524.6 | |
| 2.35 | 162.25 | 1.25 | 86.73 | -20.40 | 36.04 | 6.49 | 197.21 | 0.3595 | 1066.3 | 390.5 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -23.54 | 36.12 | 6.57 | 194.94 | 0.4083 | 652.0 | 444.9 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -23.94 | 36.11 | 6.55 | 194.65 | 0.4144 | -883.0 | -699.4 | |
| 10.21 | -21.00 | 5.43 | -21.00 | -20.72 | 35.89 | 6.34 | 196.56 | 0.3638 | 1021.3 | 999999 | |
| 2.62 | 4.97 | 1.43 | 2.71 | -24.20 | 35.92 | 6.37 | 194.07 | 0.4177 | -860.6 | -731.1 | |
| 1.99 | -21.00 | 1.06 | -21.00 | -21.01 | 35.67 | 6.12 | 195.79 | 0.3674 | 983.6 | 999999 | |
| 3.25 | -21.00 | 1.74 | -21.00 | -21.34 | 35.56 | 6.00 | 195.25 | 0.3719 | 1014.9 | 999999 | |
| 10.40 | -21.00 | 5.56 | -21.00 | -21.89 | 35.35 | 5.80 | 194.35 | 0.3797 | 1116.8 | 999999 | |
| 7.95 | -21.00 | 4.25 | -21.00 | -21.50 | 35.27 | 5.72 | 194.44 | 0.3733 | 1054.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.24 | 35.06 | 5.51 | 194.12 | 0.3684 | 223.0 | 211.8 | |
| 0.72 | 115.97 | 0.39 | 62.75 | -23.41 | 35.08 | 5.53 | 192.75 | 0.4023 | 129.6 | -118.4 | |
| 2.71 | -31.00 | 1.47 | -31.00 | -23.31 | 34.98 | 5.42 | 192.58 | 0.4004 | -474.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.94 | 34.93 | 5.38 | 192.69 | 0.3946 | 366.0 | 263.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.50 | 34.77 | 5.22 | 193.24 | 0.3714 | 591.0 | 465.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.92 | 34.66 | 5.10 | 193.34 | 0.3617 | -53.0 | 104.1 | |
| 1.27 | 1.99 | 0.68 | 1.07 | -22.81 | 34.53 | 4.97 | 191.84 | 0.3911 | 710.6 | 701.4 | |
| 19.89 | -31.00 | 10.77 | -31.00 | -23.77 | 34.46 | 4.91 | 191.17 | 0.4060 | -1077.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -20.85 | 34.16 | 4.61 | 192.14 | 0.3589 | -903.0 | -653.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -23.24 | 34.11 | 4.56 | 190.66 | 0.3966 | -205.0 | -203.4 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -20.85 | 33.94 | 4.38 | 191.56 | 0.3581 | -1014.0 | -838.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -19.56 | 33.77 | 4.22 | 191.93 | 0.3368 | -925.0 | -741.9 | |
| 0.00 | 3.62 | 0.00 | 1.92 | -20.95 | 33.71 | 4.16 | 190.92 | 0.3589 | -942.0 | -874.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -19.33 | 33.63 | 4.08 | 191.70 | 0.3327 | -808.0 | -665.5 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -21.31 | 33.69 | 4.14 | 190.66 | 0.3646 | -716.0 | -649.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -23.31 | 33.71 | 4.16 | 189.72 | 0.3965 | -708.0 | -563.5 | |
| 0.00 | 3.53 | 0.00 | 1.88 | -21.99 | 33.61 | 4.06 | 190.11 | 0.3753 | -730.0 | -801.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -22.58 | 33.43 | 3.88 | 189.39 | 0.3842 | -936.0 | -745.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.75 | 33.32 | 3.77 | 190.58 | 0.3385 | -848.0 | -720.7 | |
| 0.00 | 3.34 | 0.00 | 1.79 | -22.16 | 33.32 | 3.77 | 189.32 | 0.3771 | -1038.0 | -846.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -23.14 | 33.18 | 3.63 | 188.56 | 0.3925 | -887.0 | -755.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.04 | 33.01 | 3.46 | 188.21 | 0.3905 | -687.0 | -597.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -21.54 | 32.84 | 3.29 | 188.42 | 0.3660 | -954.0 | -743.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -20.17 | 32.75 | 3.20 | 188.80 | 0.3437 | -846.0 | -616.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.63 | 32.71 | 3.16 | 188.06 | 0.3673 | -774.0 | -659.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -23.14 | 32.71 | 3.16 | 187.48 | 0.3915 | -638.0 | -416.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -21.57 | 32.48 | 2.93 | 187.50 | 0.3657 | -687.0 | -592.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.83 | 31.83 | 2.28 | 185.77 | 0.3687 | -670.0 | -581.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
