SDO HMI 2011-06-03 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.53 | 17.98 | 1.41 | 10.24 | 19.56 | 6.48 | -21.96 | 45.74 | 0.4920 | -156.9 | -77.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

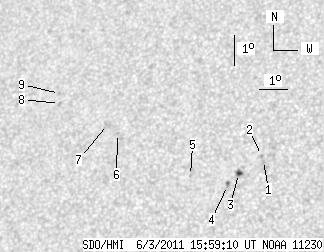

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.26 | 19.20 | 9.41 | -19.03 | 42.58 | 0.4571 | -762.0 | -620.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 19.37 | 9.32 | -19.12 | 42.45 | 0.4598 | -731.0 | -603.1 | |
| 2.53 | 3.89 | 1.41 | 2.17 | 18.79 | 8.61 | -19.84 | 44.38 | 0.4612 | -939.1 | -718.1 | |
| 0.00 | 2.98 | 0.00 | 1.66 | 18.40 | 8.28 | -20.17 | 45.46 | 0.4608 | -1000.0 | -634.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 18.73 | 6.97 | -21.48 | 46.66 | 0.4787 | -770.0 | -598.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 20.09 | 4.21 | -24.24 | 47.80 | 0.5225 | 798.0 | 628.5 | |
| 0.00 | 2.44 | 0.00 | 1.42 | 20.39 | 3.80 | -24.64 | 47.80 | 0.5296 | 750.0 | 627.6 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 21.08 | 1.94 | -26.50 | 48.72 | 0.5562 | 878.0 | 639.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 21.41 | 1.88 | -26.57 | 48.31 | 0.5597 | 685.0 | 636.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
