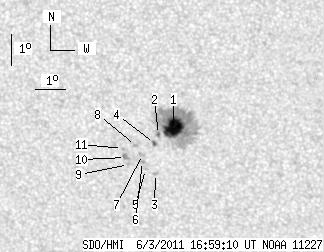

SDO HMI 2011-06-03 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.30 | 147.87 | 13.52 | 79.05 | -20.82 | 19.02 | -8.88 | 157.56 | 0.3792 | 1052.8 | 503.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.50 | 128.70 | 12.55 | 68.71 | -20.68 | 19.21 | -8.69 | 157.83 | 0.3760 | 1306.6 | 479.1 | |
| 0.90 | -1.00 | 0.48 | -1.00 | -20.88 | 18.70 | -9.19 | 156.90 | 0.3820 | 703.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -22.15 | 18.52 | -9.37 | 157.85 | 0.4018 | 695.0 | 583.2 | |
| 0.90 | 2.53 | 0.49 | 1.36 | -21.17 | 18.55 | -9.34 | 156.89 | 0.3873 | 928.6 | 748.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.02 | 18.19 | -9.70 | 157.03 | 0.4019 | 722.0 | 442.2 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -21.76 | 18.11 | -9.78 | 156.58 | 0.3986 | 813.0 | 698.4 | |
| 0.00 | 2.26 | 0.00 | 1.22 | -21.53 | 18.13 | -9.76 | 156.37 | 0.3952 | 750.0 | 599.0 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -21.23 | 17.92 | -9.97 | 155.59 | 0.3923 | 841.0 | 699.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -21.85 | 17.64 | -10.25 | 155.70 | 0.4031 | 729.0 | 539.9 | |
| 0.00 | 3.89 | 0.00 | 2.10 | -21.63 | 17.56 | -10.33 | 155.27 | 0.4004 | 759.0 | 708.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -21.33 | 17.48 | -10.41 | 154.77 | 0.3967 | 630.0 | 580.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
