SDO HMI 2011-06-03 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.43 | 112.51 | 15.34 | 88.98 | 9.17 | 337.47 | -50.43 | 77.87 | 0.7807 | -814.6 | -235.0 | |
|
previous
or next observation for the same group /

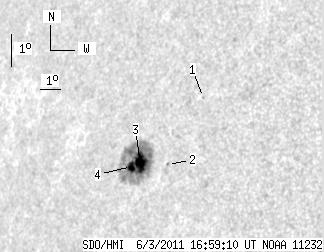

back to the solar disc SDO HMI 2011-06-03 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.48 | 11.21 | 340.12 | -47.77 | 74.68 | 0.7554 | 503.0 | 462.9 | |
| 0.00 | 0.90 | 0.00 | 0.69 | 9.14 | 338.86 | -49.04 | 77.64 | 0.7655 | -676.0 | -591.9 | |
| 13.92 | 110.98 | 10.96 | 87.81 | 9.18 | 337.56 | -50.34 | 77.83 | 0.7797 | -1002.9 | -236.1 | |
| 5.51 | -3.00 | 4.38 | -3.00 | 9.09 | 337.14 | -50.76 | 78.02 | 0.7840 | -676.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
