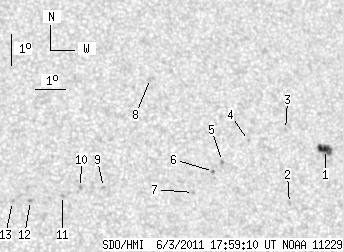

SDO HMI 2011-06-03 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.49 | 30.64 | 5.22 | 16.57 | 17.77 | 42.31 | 14.98 | 322.34 | 0.4008 | -202.5 | 48.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.49 | 12.92 | 5.22 | 7.10 | 17.98 | 45.53 | 18.20 | 316.68 | 0.4347 | -936.7 | -593.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 16.26 | 44.16 | 16.83 | 315.85 | 0.4007 | -777.0 | -610.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 18.62 | 44.26 | 16.92 | 319.73 | 0.4285 | -894.0 | -673.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 18.26 | 42.99 | 15.65 | 321.30 | 0.4114 | -901.0 | -757.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 17.59 | 42.07 | 14.73 | 321.86 | 0.3940 | 869.0 | 701.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 17.27 | 41.74 | 14.41 | 321.93 | 0.3869 | -868.0 | -714.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 16.60 | 41.04 | 13.70 | 322.16 | 0.3715 | -825.0 | -709.8 | |
| 0.00 | 3.43 | 0.00 | 1.86 | 20.26 | 39.91 | 12.57 | 329.93 | 0.4092 | 205.0 | 252.0 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 16.75 | 38.12 | 10.79 | 328.70 | 0.3464 | 921.0 | 696.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 16.75 | 37.38 | 10.04 | 330.47 | 0.3402 | 973.0 | 828.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.50 | 36.79 | 9.45 | 331.55 | 0.3319 | 896.0 | 728.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.34 | 35.75 | 8.42 | 333.99 | 0.3217 | 1000.0 | 799.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.30 | 35.18 | 7.84 | 335.51 | 0.3171 | 803.0 | 618.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
