SDO HMI 2011-06-03 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.88 | 40.59 | 10.86 | 21.16 | -18.43 | 26.28 | -0.51 | 178.64 | 0.3124 | 613.0 | -62.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

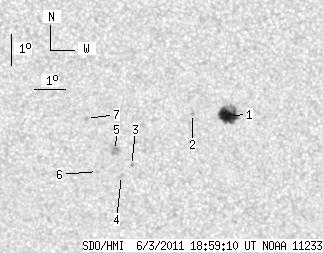

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.88 | 27.11 | 10.86 | 14.10 | -18.07 | 27.45 | 0.66 | 182.08 | 0.3052 | 1073.7 | 745.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -18.01 | 26.30 | -0.49 | 178.47 | 0.3041 | 991.0 | 819.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -19.68 | 24.32 | -2.46 | 173.02 | 0.3341 | 661.0 | 525.4 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -20.00 | 23.99 | -2.79 | 172.24 | 0.3401 | -687.0 | -527.2 | |
| 0.00 | 5.51 | 0.00 | 2.89 | -19.19 | 23.81 | -2.97 | 171.37 | 0.3274 | -962.0 | -860.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -19.87 | 23.22 | -3.56 | 170.05 | 0.3400 | -472.0 | -406.8 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -18.17 | 22.90 | -3.88 | 168.10 | 0.3133 | -856.0 | -673.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
