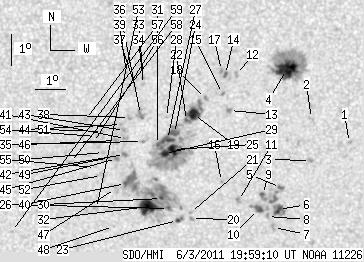

SDO HMI 2011-06-03 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.86 | 494.28 | 55.11 | 267.41 | -21.97 | 35.87 | 9.64 | 202.97 | 0.4025 | 180.9 | 161.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.09 | -21.71 | 41.08 | 14.85 | 213.21 | 0.4365 | 818.0 | 567.5 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -20.93 | 39.72 | 13.49 | 211.84 | 0.4149 | 555.0 | 561.4 | |
| 0.00 | 2.62 | 0.00 | 1.44 | -22.30 | 39.82 | 13.59 | 210.22 | 0.4338 | 835.0 | 535.6 | |
| 24.94 | 81.88 | 13.39 | 43.92 | -19.34 | 38.75 | 12.53 | 212.21 | 0.3857 | 1181.0 | 495.6 | |
| 2.44 | 17.53 | 1.34 | 9.67 | -23.19 | 38.89 | 12.66 | 207.47 | 0.4387 | 777.7 | 813.9 | |
| 4.88 | 11.84 | 2.70 | 6.56 | -23.91 | 38.89 | 12.67 | 206.66 | 0.4486 | 853.0 | 653.9 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -24.51 | 38.78 | 12.56 | 205.82 | 0.4560 | 603.0 | 582.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -24.15 | 38.54 | 12.31 | 205.78 | 0.4494 | 682.0 | 580.1 | |
| 1.08 | -5.00 | 0.60 | -5.00 | -23.42 | 38.30 | 12.07 | 206.13 | 0.4377 | 1017.8 | 999999 | |
| 4.34 | 10.66 | 2.40 | 5.89 | -23.92 | 38.21 | 11.99 | 205.43 | 0.4439 | 905.9 | 759.3 | |
| 0.00 | 3.25 | 0.00 | 1.79 | -23.62 | 37.51 | 11.28 | 204.43 | 0.4351 | 914.0 | 782.8 | |
| 0.00 | 2.53 | 0.00 | 1.35 | -19.51 | 37.12 | 10.89 | 208.54 | 0.3745 | 833.0 | 698.3 | |
| 0.00 | 3.16 | 0.00 | 1.70 | -20.67 | 36.97 | 10.74 | 206.71 | 0.3897 | 979.0 | 786.3 | |
| 1.99 | 2.35 | 1.06 | 1.25 | -19.51 | 36.76 | 10.53 | 207.74 | 0.3717 | 1027.0 | 872.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -20.12 | 36.70 | 10.47 | 206.82 | 0.3800 | 801.0 | 744.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -22.99 | 36.88 | 10.65 | 203.88 | 0.4221 | 732.0 | 617.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.38 | 36.62 | 10.39 | 207.60 | 0.3688 | 1068.0 | 917.2 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -20.28 | 36.15 | 9.93 | 205.41 | 0.3784 | 979.0 | 745.8 | |
| 10.39 | 150.84 | 5.57 | 81.25 | -20.80 | 35.79 | 9.56 | 204.00 | 0.3835 | 981.9 | 432.2 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -24.22 | 35.97 | 9.74 | 200.90 | 0.4343 | -728.0 | -569.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -24.02 | 35.92 | 9.69 | 200.98 | 0.4311 | -767.0 | -594.0 | |
| 2.08 | -19.00 | 1.11 | -19.00 | -21.00 | 35.57 | 9.35 | 203.30 | 0.3849 | 811.5 | 999999 | |
| 1.63 | 4.79 | 0.89 | 2.63 | -24.28 | 35.50 | 9.27 | 199.93 | 0.4327 | -713.6 | -549.5 | |
| 5.33 | -19.00 | 2.86 | -19.00 | -21.42 | 35.20 | 8.98 | 202.03 | 0.3888 | 998.5 | 999999 | |
| 7.41 | -19.00 | 4.00 | -19.00 | -21.94 | 35.17 | 8.94 | 201.43 | 0.3963 | 1102.0 | 999999 | |
| 1.54 | 126.35 | 0.84 | 68.79 | -23.88 | 35.16 | 8.94 | 199.61 | 0.4250 | -489.7 | -135.4 | |
| 6.24 | -19.00 | 3.35 | -19.00 | -21.61 | 34.98 | 8.76 | 201.35 | 0.3904 | 1016.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -20.90 | 34.91 | 8.68 | 201.92 | 0.3793 | 656.0 | 468.0 | |
| 3.52 | -19.00 | 1.90 | -19.00 | -22.07 | 34.91 | 8.69 | 200.74 | 0.3968 | 965.6 | 999999 | |
| 1.36 | -26.00 | 0.74 | -26.00 | -23.55 | 34.91 | 8.68 | 199.37 | 0.4188 | -508.2 | 999999 | |
| 1.27 | -19.00 | 0.68 | -19.00 | -21.78 | 34.66 | 8.44 | 200.48 | 0.3910 | 700.8 | 999999 | |
| 19.70 | -26.00 | 10.75 | -26.00 | -23.82 | 34.49 | 8.26 | 198.29 | 0.4206 | -1021.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -19.64 | 34.09 | 7.86 | 201.34 | 0.3555 | -1044.0 | -844.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -19.83 | 34.10 | 7.87 | 201.15 | 0.3585 | -876.0 | -731.3 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -21.68 | 34.16 | 7.93 | 199.45 | 0.3868 | 703.0 | 543.2 | |
| 0.00 | 7.59 | 0.00 | 4.05 | -20.80 | 34.05 | 7.82 | 200.03 | 0.3729 | -774.0 | -654.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.93 | 33.84 | 7.61 | 200.42 | 0.3584 | -820.0 | -682.1 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -20.90 | 33.69 | 7.46 | 199.10 | 0.3724 | -855.0 | -779.4 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -19.45 | 33.52 | 7.30 | 200.14 | 0.3493 | -851.0 | -674.2 | |
| 1.72 | -26.00 | 0.93 | -26.00 | -23.06 | 33.67 | 7.45 | 197.19 | 0.4052 | -915.7 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -21.58 | 33.59 | 7.37 | 198.25 | 0.3823 | -824.0 | -714.7 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -22.11 | 33.59 | 7.36 | 197.79 | 0.3903 | -1016.0 | -900.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.32 | 33.55 | 7.32 | 198.38 | 0.3781 | -909.0 | -806.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -21.13 | 33.44 | 7.21 | 198.30 | 0.3746 | -990.0 | -781.0 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -22.24 | 33.33 | 7.10 | 197.10 | 0.3910 | -961.0 | -873.1 | |
| 0.00 | 3.25 | 0.00 | 1.74 | -21.65 | 33.30 | 7.07 | 197.52 | 0.3819 | -1051.0 | -875.3 | |
| 0.00 | 4.88 | 0.00 | 2.64 | -23.22 | 33.35 | 7.12 | 196.36 | 0.4062 | -635.0 | -579.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -24.48 | 33.35 | 7.13 | 195.46 | 0.4254 | -735.0 | -568.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.20 | 33.10 | 6.87 | 196.59 | 0.3894 | -971.0 | -776.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -22.04 | 32.89 | 6.66 | 196.25 | 0.3860 | -970.0 | -759.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -21.36 | 32.83 | 6.60 | 196.65 | 0.3751 | -621.0 | -472.2 | |
| 0.00 | 4.88 | 0.00 | 2.63 | -22.80 | 32.86 | 6.63 | 195.61 | 0.3975 | -910.0 | -628.2 | |
| 0.00 | 2.62 | 0.00 | 1.43 | -23.89 | 32.75 | 6.52 | 194.60 | 0.4137 | -604.0 | -572.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.52 | 32.64 | 6.41 | 196.07 | 0.3767 | -936.0 | -795.3 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -22.53 | 32.65 | 6.42 | 195.33 | 0.3925 | -779.0 | -594.7 | |
| 0.00 | 2.53 | 0.00 | 1.35 | -21.71 | 32.55 | 6.32 | 195.71 | 0.3794 | -874.0 | -678.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -20.97 | 32.25 | 6.02 | 195.58 | 0.3664 | -946.0 | -686.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.37 | 31.82 | 5.59 | 193.53 | 0.3866 | -720.0 | -560.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.65 | 29.93 | 3.71 | 188.14 | 0.4168 | -731.0 | -633.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
