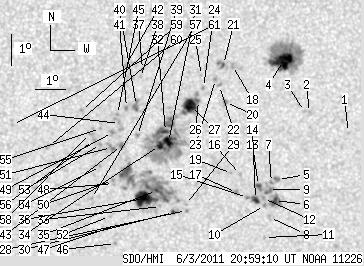

SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.81 | 476.65 | 43.86 | 258.28 | -22.08 | 35.81 | 10.13 | 203.87 | 0.4073 | 179.3 | 181.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.60 | -21.67 | 41.17 | 15.50 | 214.36 | 0.4418 | 763.0 | 631.8 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -21.02 | 39.78 | 14.11 | 212.84 | 0.4214 | 784.0 | 569.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.99 | 39.61 | 13.94 | 212.58 | 0.4195 | 767.0 | 482.6 | |
| 19.34 | 79.99 | 10.40 | 43.00 | -19.34 | 38.77 | 13.09 | 213.34 | 0.3906 | 1224.2 | 542.0 | |
| 0.00 | 2.80 | 0.00 | 1.55 | -23.21 | 38.92 | 13.25 | 208.49 | 0.4434 | 832.0 | 740.5 | |
| 3.89 | 12.56 | 2.16 | 6.97 | -23.91 | 38.89 | 13.22 | 207.63 | 0.4525 | 898.0 | 629.2 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -23.31 | 38.73 | 13.05 | 208.02 | 0.4433 | 979.0 | 807.6 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -24.47 | 38.78 | 13.11 | 206.81 | 0.4594 | 661.0 | 566.6 | |
| 0.00 | 7.14 | 0.00 | 3.95 | -23.54 | 38.65 | 12.98 | 207.62 | 0.4459 | 770.0 | 823.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -24.08 | 38.56 | 12.89 | 206.88 | 0.4525 | 710.0 | 602.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -25.14 | 38.68 | 13.01 | 205.93 | 0.4677 | 715.0 | 539.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -23.84 | 38.51 | 12.84 | 207.03 | 0.4489 | 979.0 | 800.1 | |
| 2.53 | 3.98 | 1.40 | 2.19 | -23.41 | 38.29 | 12.62 | 207.13 | 0.4415 | 914.9 | 897.9 | |
| 3.98 | 5.24 | 2.20 | 2.90 | -23.88 | 38.24 | 12.57 | 206.52 | 0.4475 | 886.6 | 745.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.81 | 37.96 | 12.29 | 206.09 | 0.4446 | 786.0 | 662.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -23.05 | 37.65 | 11.98 | 206.36 | 0.4320 | 848.0 | 651.7 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -23.65 | 37.57 | 11.90 | 205.55 | 0.4397 | 1002.0 | 840.0 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -19.50 | 37.10 | 11.42 | 209.68 | 0.3787 | 883.0 | 708.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -23.02 | 37.34 | 11.67 | 205.81 | 0.4294 | 849.0 | 712.4 | |
| 0.00 | 2.62 | 0.00 | 1.41 | -20.70 | 36.95 | 11.28 | 207.79 | 0.3942 | 973.0 | 821.7 | |
| 1.72 | 3.62 | 0.92 | 1.93 | -19.47 | 36.80 | 11.13 | 209.09 | 0.3758 | 998.7 | 1006.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -20.15 | 36.71 | 11.04 | 208.00 | 0.3847 | 976.0 | 737.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -19.95 | 36.57 | 10.90 | 207.94 | 0.3808 | 896.0 | 774.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.21 | 36.19 | 10.52 | 206.79 | 0.3817 | 921.0 | 784.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.82 | 36.10 | 10.43 | 207.09 | 0.3755 | 736.0 | 577.7 | |
| 0.81 | 25.67 | 0.44 | 13.78 | -20.63 | 36.05 | 10.38 | 205.98 | 0.3867 | 857.1 | 637.3 | |
| 11.93 | -26.00 | 6.41 | -26.00 | -20.79 | 35.80 | 10.13 | 205.24 | 0.3873 | 1019.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -24.24 | 35.93 | 10.25 | 201.86 | 0.4377 | -661.0 | -519.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -24.04 | 35.88 | 10.20 | 201.95 | 0.4346 | -733.0 | -610.2 | |
| 1.54 | 3.98 | 0.85 | 2.19 | -24.31 | 35.49 | 9.82 | 200.96 | 0.4362 | -701.8 | -598.9 | |
| 7.41 | 122.20 | 4.00 | 66.01 | -21.97 | 35.15 | 9.48 | 202.55 | 0.4001 | 1065.5 | 436.5 | |
| 2.26 | -31.00 | 1.22 | -31.00 | -21.64 | 35.03 | 9.36 | 202.63 | 0.3945 | 1113.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -24.11 | 35.04 | 9.36 | 200.26 | 0.4308 | -309.0 | -239.2 | |
| 3.07 | -31.00 | 1.66 | -31.00 | -22.10 | 34.86 | 9.19 | 201.80 | 0.4002 | 957.7 | 999999 | |
| 1.36 | 125.00 | 0.74 | 68.17 | -23.58 | 34.86 | 9.19 | 200.39 | 0.4220 | -497.3 | -143.4 | |
| 20.97 | -35.00 | 11.46 | -35.00 | -23.85 | 34.48 | 8.81 | 199.37 | 0.4239 | -992.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.63 | 34.15 | 8.48 | 202.85 | 0.3593 | -1038.0 | -860.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.89 | 34.10 | 8.43 | 202.44 | 0.3628 | -929.0 | -759.1 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -21.77 | 34.11 | 8.44 | 200.49 | 0.3910 | 606.0 | 420.6 | |
| 0.00 | 6.24 | 0.00 | 3.33 | -20.80 | 34.02 | 8.35 | 201.27 | 0.3759 | -614.0 | -735.6 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -20.86 | 33.70 | 8.03 | 200.45 | 0.3750 | -1029.0 | -852.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.50 | 33.59 | 7.92 | 201.64 | 0.3539 | -963.0 | -737.7 | |
| 0.00 | 3.25 | 0.00 | 1.75 | -22.10 | 33.60 | 7.93 | 199.06 | 0.3932 | -986.0 | -842.2 | |
| 0.00 | 6.33 | 0.00 | 3.39 | -21.38 | 33.49 | 7.82 | 199.48 | 0.3817 | -825.0 | -763.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -21.09 | 33.41 | 7.74 | 199.57 | 0.3769 | -956.0 | -730.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -25.35 | 33.60 | 7.93 | 196.45 | 0.4419 | -760.0 | -635.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -24.75 | 33.56 | 7.89 | 196.81 | 0.4327 | -653.0 | -466.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -23.35 | 33.41 | 7.74 | 197.57 | 0.4110 | -735.0 | -666.3 | |
| 0.00 | 3.80 | 0.00 | 2.04 | -21.68 | 33.28 | 7.61 | 198.72 | 0.3850 | -1061.0 | -836.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.25 | 33.37 | 7.70 | 197.57 | 0.4094 | -708.0 | -681.5 | |
| 0.00 | 4.16 | 0.00 | 2.24 | -22.17 | 33.27 | 7.60 | 198.27 | 0.3925 | -987.0 | -845.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.45 | 33.34 | 7.67 | 196.59 | 0.4272 | -633.0 | -597.5 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -22.07 | 32.90 | 7.23 | 197.52 | 0.3891 | -983.0 | -762.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.79 | 32.94 | 7.27 | 197.02 | 0.4003 | -892.0 | -767.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.55 | 32.88 | 7.21 | 197.91 | 0.3810 | -950.0 | -729.3 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -21.94 | 32.67 | 6.99 | 197.09 | 0.3860 | -787.0 | -553.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -23.85 | 32.70 | 7.03 | 195.70 | 0.4153 | -659.0 | -591.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.71 | 32.52 | 6.85 | 196.95 | 0.3818 | -925.0 | -668.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -20.96 | 32.23 | 6.55 | 196.87 | 0.3688 | -948.0 | -669.2 | |
| 0.00 | 2.80 | 0.00 | 1.50 | -22.13 | 31.19 | 5.52 | 193.52 | 0.3827 | -819.0 | -696.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.42 | 29.98 | 4.31 | 191.03 | 0.3672 | -699.0 | -599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
