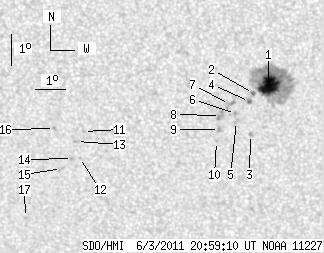

SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.41 | 156.91 | 12.97 | 83.70 | -20.97 | 18.53 | -7.14 | 161.90 | 0.3724 | 640.3 | 442.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.87 | 122.47 | 12.15 | 65.06 | -20.67 | 19.19 | -6.48 | 163.05 | 0.3640 | 1320.4 | 501.5 | |
| 1.54 | 1.81 | 0.82 | 0.96 | -20.93 | 18.68 | -6.99 | 162.06 | 0.3704 | 716.5 | 715.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -22.26 | 18.52 | -7.15 | 162.82 | 0.3917 | 806.0 | 602.9 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -21.19 | 18.54 | -7.13 | 161.95 | 0.3752 | 1037.0 | 785.1 | |
| 0.00 | 2.71 | 0.00 | 1.46 | -21.84 | 18.08 | -7.59 | 161.47 | 0.3874 | 776.0 | 671.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -21.58 | 18.06 | -7.61 | 161.19 | 0.3836 | 1003.0 | 791.1 | |
| 0.00 | 5.15 | 0.00 | 2.76 | -21.28 | 17.88 | -7.79 | 160.50 | 0.3801 | 820.0 | 749.9 | |
| 0.00 | 5.60 | 0.00 | 3.01 | -21.64 | 17.56 | -8.11 | 160.12 | 0.3872 | 876.0 | 731.8 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -22.10 | 17.50 | -8.17 | 160.41 | 0.3944 | 741.0 | 607.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.49 | 17.38 | -8.29 | 160.51 | 0.4010 | 751.0 | 559.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -22.16 | 12.96 | -12.71 | 151.22 | 0.4252 | -901.0 | -702.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -23.02 | 12.74 | -12.93 | 151.85 | 0.4384 | -669.0 | -603.4 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -22.49 | 12.69 | -12.98 | 151.13 | 0.4317 | -752.0 | -673.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.05 | 12.50 | -13.17 | 151.46 | 0.4406 | -730.0 | -650.7 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -23.38 | 12.09 | -13.58 | 151.12 | 0.4481 | -682.0 | -599.2 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -22.06 | 11.99 | -13.68 | 149.32 | 0.4315 | -973.0 | -730.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -25.01 | 10.67 | -15.01 | 150.62 | 0.4803 | -823.0 | -684.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
