SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.41 | 274.14 | 29.57 | 143.27 | 17.24 | 19.93 | -5.74 | 17.10 | 0.3202 | -445.7 | -364.2 | |
|
previous
or next observation for the same group /

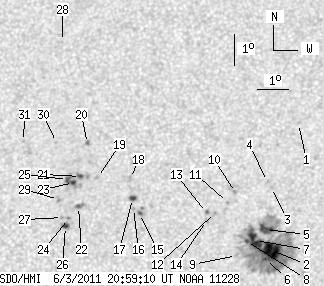

back to the solar disc SDO HMI 2011-06-03 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | 20.72 | 21.99 | -3.68 | 9.46 | 0.3666 | -672.0 | -475.2 | |
| 17.72 | 216.02 | 9.21 | 112.36 | 16.63 | 21.22 | -4.45 | 14.25 | 0.3033 | -1357.6 | -502.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 18.65 | 21.17 | -4.50 | 12.84 | 0.3359 | -834.0 | -631.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 18.84 | 21.04 | -4.63 | 13.07 | 0.3395 | -853.0 | -689.8 | |
| 8.23 | -2.00 | 4.29 | -2.00 | 17.30 | 21.01 | -4.66 | 14.32 | 0.3149 | -999.2 | 999999 | |
| 0.99 | -2.00 | 0.52 | -2.00 | 16.35 | 21.04 | -4.63 | 15.07 | 0.2995 | -1171.3 | 999999 | |
| 11.21 | -2.00 | 5.84 | -2.00 | 16.95 | 20.70 | -4.97 | 15.54 | 0.3106 | -1124.6 | 999999 | |
| 1.45 | -2.00 | 0.75 | -2.00 | 16.92 | 20.42 | -5.25 | 16.41 | 0.3114 | -766.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 16.47 | 20.11 | -5.56 | 17.76 | 0.3059 | -194.0 | -166.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.49 | 20.02 | -5.65 | 16.11 | 0.3381 | -923.0 | -743.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.17 | 19.77 | -5.90 | 17.07 | 0.3342 | -803.0 | -634.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.85 | 19.40 | -6.28 | 18.40 | 0.3311 | -881.0 | -766.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.85 | 19.11 | -6.57 | 19.18 | 0.3327 | -845.0 | -777.8 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 17.59 | 19.12 | -6.56 | 19.43 | 0.3286 | -860.0 | -658.2 | |
| 0.99 | 3.43 | 0.52 | 1.81 | 17.82 | 16.95 | -8.72 | 24.81 | 0.3456 | -980.3 | -822.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.98 | 16.75 | -8.93 | 25.10 | 0.3493 | -756.0 | -660.1 | |
| 3.07 | 3.71 | 1.63 | 1.96 | 18.30 | 16.70 | -8.97 | 24.82 | 0.3544 | -856.3 | -750.0 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 18.94 | 16.60 | -9.07 | 24.27 | 0.3645 | 774.0 | 595.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 18.98 | 15.52 | -10.15 | 26.70 | 0.3726 | 739.0 | 524.7 | |
| 1.27 | 2.71 | 0.68 | 1.46 | 20.08 | 15.12 | -10.55 | 26.20 | 0.3912 | 772.2 | 676.3 | |
| 2.17 | 5.15 | 1.16 | 2.75 | 19.01 | 14.96 | -10.71 | 27.89 | 0.3772 | 978.6 | 786.9 | |
| 1.81 | 3.98 | 0.96 | 2.11 | 18.04 | 14.96 | -10.71 | 29.22 | 0.3637 | 861.3 | 803.1 | |
| 1.81 | 11.48 | 0.97 | 6.14 | 18.82 | 14.75 | -10.93 | 28.62 | 0.3761 | 1156.1 | 788.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 17.66 | 14.66 | -11.01 | 30.45 | 0.3608 | 972.0 | 770.2 | |
| 2.98 | -23.00 | 1.60 | -23.00 | 18.91 | 14.54 | -11.13 | 28.93 | 0.3791 | 892.7 | 999999 | |
| 2.71 | 3.98 | 1.44 | 2.11 | 17.40 | 14.57 | -11.10 | 31.02 | 0.3579 | 1045.9 | 810.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 17.69 | 14.46 | -11.21 | 30.84 | 0.3629 | 919.0 | 709.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 23.43 | 14.02 | -11.65 | 24.65 | 0.4460 | 573.0 | 567.2 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 18.27 | 14.29 | -11.38 | 30.37 | 0.3722 | 937.0 | 748.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 20.11 | 14.09 | -11.58 | 28.30 | 0.3992 | 781.0 | 639.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 20.14 | 13.00 | -12.67 | 30.43 | 0.4083 | 630.0 | 421.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
