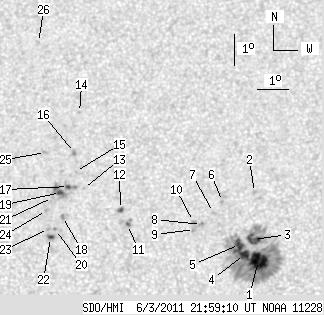

SDO HMI 2011-06-03 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.44 | 271.09 | 26.34 | 141.58 | 17.27 | 19.93 | -5.19 | 15.47 | 0.3179 | -438.4 | -322.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.24 | 212.96 | 11.03 | 110.70 | 16.64 | 21.21 | -3.91 | 12.58 | 0.3012 | -1332.8 | -495.5 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 18.81 | 21.03 | -4.09 | 11.60 | 0.3371 | -930.0 | -660.8 | |
| 8.86 | -1.00 | 4.62 | -1.00 | 17.31 | 21.03 | -4.08 | 12.61 | 0.3127 | -984.8 | 999999 | |
| 5.69 | -1.00 | 2.96 | -1.00 | 16.83 | 20.76 | -4.36 | 13.82 | 0.3060 | -1168.5 | 999999 | |
| 4.43 | -1.00 | 2.31 | -1.00 | 17.15 | 20.59 | -4.53 | 14.06 | 0.3118 | -1013.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.53 | 20.01 | -5.11 | 14.61 | 0.3363 | -864.0 | -707.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.17 | 19.73 | -5.39 | 15.66 | 0.3319 | -718.0 | -529.1 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 17.79 | 19.36 | -5.76 | 17.04 | 0.3275 | -922.0 | -786.1 | |
| 0.00 | 3.16 | 0.00 | 1.66 | 17.63 | 19.14 | -5.98 | 17.81 | 0.3261 | -840.0 | -633.2 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 17.88 | 19.10 | -6.02 | 17.67 | 0.3303 | -787.0 | -673.0 | |
| 1.36 | 3.53 | 0.71 | 1.86 | 17.79 | 16.97 | -8.14 | 23.39 | 0.3412 | -963.7 | -855.8 | |
| 2.17 | 2.89 | 1.15 | 1.53 | 18.27 | 16.73 | -8.39 | 23.43 | 0.3500 | -877.0 | -736.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.95 | 15.49 | -9.63 | 25.55 | 0.3683 | 797.0 | 586.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 21.42 | 15.20 | -9.92 | 23.36 | 0.4061 | 706.0 | 573.6 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 19.50 | 15.19 | -9.92 | 25.54 | 0.3784 | 723.0 | 539.1 | |
| 0.00 | 2.80 | 0.00 | 1.50 | 20.11 | 15.12 | -10.00 | 24.97 | 0.3877 | 911.0 | 724.9 | |
| 1.81 | 6.51 | 0.96 | 3.47 | 19.01 | 14.99 | -10.12 | 26.59 | 0.3728 | 993.7 | 735.3 | |
| 0.00 | 2.62 | 0.00 | 1.39 | 18.05 | 14.86 | -10.26 | 28.18 | 0.3601 | 1069.0 | 902.9 | |
| 2.71 | 13.29 | 1.45 | 7.09 | 18.82 | 14.74 | -10.37 | 27.40 | 0.3719 | 1111.0 | 737.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 17.63 | 14.65 | -10.46 | 29.24 | 0.3558 | 789.0 | 727.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.66 | 14.49 | -10.62 | 28.17 | 0.3715 | 729.0 | 600.1 | |
| 2.17 | 3.43 | 1.15 | 1.82 | 17.38 | 14.51 | -10.61 | 29.95 | 0.3534 | 1070.0 | 813.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 17.67 | 14.43 | -10.69 | 29.72 | 0.3581 | 939.0 | 712.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.24 | 14.32 | -10.79 | 29.12 | 0.3670 | 980.0 | 796.8 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 20.12 | 14.17 | -10.95 | 27.00 | 0.3945 | 667.0 | 548.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 23.73 | 13.64 | -11.47 | 24.03 | 0.4490 | 699.0 | 521.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
