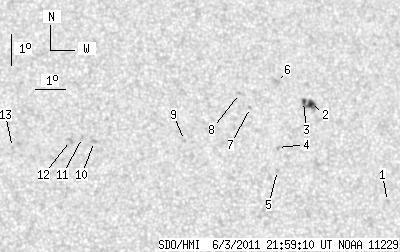

SDO HMI 2011-06-03 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.06 | 29.46 | 2.82 | 16.15 | 17.35 | 42.91 | 17.79 | 316.78 | 0.4247 | -218.7 | -143.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.06 | 14.90 | 47.72 | 22.60 | 305.30 | 0.4570 | 740.0 | 619.6 | |
| 3.43 | 10.49 | 1.91 | 5.84 | 18.01 | 45.46 | 20.34 | 313.62 | 0.4585 | -904.5 | -842.8 | |
| 1.63 | -2.00 | 0.91 | -2.00 | 18.07 | 45.23 | 20.11 | 314.04 | 0.4566 | -838.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.60 | 44.18 | 19.06 | 312.98 | 0.4296 | -855.0 | -746.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 15.87 | 44.11 | 18.99 | 311.76 | 0.4214 | -699.0 | -573.0 | |
| 0.00 | 3.25 | 0.00 | 1.81 | 18.68 | 44.38 | 19.26 | 316.23 | 0.4536 | -696.0 | -547.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 17.87 | 43.41 | 18.29 | 316.33 | 0.4344 | -813.0 | -583.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 18.32 | 43.09 | 17.97 | 317.56 | 0.4358 | -763.0 | -647.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 16.81 | 41.10 | 15.99 | 318.25 | 0.3976 | -766.0 | -561.8 | |
| 0.00 | 2.44 | 0.00 | 1.30 | 16.78 | 38.15 | 13.03 | 323.79 | 0.3670 | 893.0 | 673.5 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 16.90 | 37.77 | 12.65 | 324.79 | 0.3650 | 741.0 | 612.3 | |
| 0.00 | 2.89 | 0.00 | 1.53 | 16.81 | 37.37 | 12.25 | 325.48 | 0.3600 | 834.0 | 704.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 16.58 | 35.48 | 10.36 | 329.41 | 0.3402 | 852.0 | 656.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
