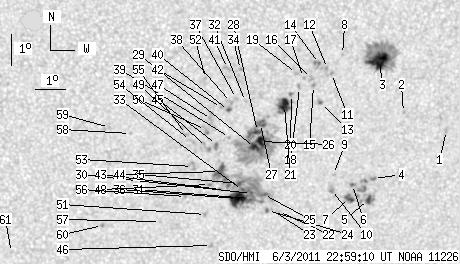

SDO HMI 2011-06-03 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.64 | 482.76 | 52.59 | 262.54 | -22.00 | 35.69 | 11.13 | 205.94 | 0.4132 | 110.7 | 177.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-03 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.89 | 0.00 | 1.61 | -21.62 | 41.28 | 16.72 | 216.41 | 0.4525 | 816.0 | 548.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.04 | 39.76 | 15.20 | 214.71 | 0.4314 | 659.0 | 507.5 | |
| 18.71 | 79.19 | 10.11 | 42.77 | -19.36 | 38.79 | 14.23 | 215.47 | 0.4013 | 1177.9 | 556.4 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -23.20 | 38.97 | 14.41 | 210.51 | 0.4524 | 780.0 | 707.4 | |
| 3.98 | 29.02 | 2.22 | 16.14 | -23.90 | 38.88 | 14.32 | 209.52 | 0.4608 | 857.8 | 718.9 | |
| 1.27 | -5.00 | 0.70 | -5.00 | -23.40 | 38.28 | 13.71 | 209.07 | 0.4496 | 887.9 | 999999 | |
| 5.15 | 7.32 | 2.86 | 4.07 | -23.83 | 38.22 | 13.66 | 208.47 | 0.4549 | 843.9 | 547.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.17 | 37.55 | 12.99 | 213.37 | 0.3876 | 786.0 | 624.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -23.07 | 37.60 | 13.03 | 208.26 | 0.4401 | 672.0 | 592.8 | |
| 0.00 | 3.71 | 0.00 | 2.05 | -23.57 | 37.58 | 13.02 | 207.65 | 0.4466 | 900.0 | 652.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -19.78 | 37.23 | 12.67 | 211.84 | 0.3929 | 778.0 | 610.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.62 | 37.09 | 12.53 | 211.78 | 0.3895 | 850.0 | 723.9 | |
| 0.45 | 1.90 | 0.24 | 1.03 | -20.72 | 36.95 | 12.38 | 209.97 | 0.4032 | 856.2 | 740.1 | |
| 1.08 | 4.16 | 0.58 | 2.23 | -19.46 | 36.81 | 12.25 | 211.45 | 0.3850 | 999.8 | 922.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -20.17 | 36.67 | 12.11 | 210.16 | 0.3935 | 924.0 | 759.1 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -19.94 | 36.58 | 12.02 | 210.30 | 0.3897 | 842.0 | 719.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.91 | 36.32 | 11.75 | 209.80 | 0.3871 | 688.0 | 661.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -20.23 | 36.21 | 11.65 | 209.14 | 0.3907 | 763.0 | 647.1 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -19.78 | 36.08 | 11.51 | 209.47 | 0.3834 | 718.0 | 622.8 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -20.46 | 35.96 | 11.40 | 208.33 | 0.3919 | 1065.0 | 773.7 | |
| 10.85 | 18.80 | 5.85 | 10.13 | -20.82 | 35.76 | 11.19 | 207.45 | 0.3954 | 1003.5 | 692.4 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -24.30 | 35.84 | 11.28 | 203.73 | 0.4450 | -568.0 | -556.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -24.23 | 35.57 | 11.00 | 203.28 | 0.4423 | -555.0 | -557.7 | |
| 1.54 | 1.63 | 0.85 | 0.90 | -24.27 | 35.47 | 10.91 | 203.06 | 0.4421 | -717.4 | -635.0 | |
| 2.35 | 126.65 | 1.29 | 69.30 | -23.74 | 35.29 | 10.72 | 203.24 | 0.4335 | 613.7 | -135.2 | |
| 6.24 | 128.46 | 3.38 | 69.63 | -21.99 | 35.05 | 10.49 | 204.60 | 0.4070 | 1017.2 | 372.8 | |
| 5.88 | -26.00 | 3.17 | -26.00 | -21.40 | 35.00 | 10.44 | 205.18 | 0.3983 | 906.9 | 999999 | |
| 2.98 | -26.00 | 1.61 | -26.00 | -21.66 | 34.92 | 10.36 | 204.71 | 0.4015 | 1022.5 | 999999 | |
| 4.88 | -26.00 | 2.65 | -26.00 | -22.19 | 34.86 | 10.30 | 204.01 | 0.4086 | 882.6 | 999999 | |
| 1.18 | -25.00 | 0.64 | -25.00 | -23.70 | 34.88 | 10.32 | 202.49 | 0.4305 | -504.7 | 999999 | |
| 0.45 | -25.00 | 0.25 | -25.00 | -23.87 | 34.82 | 10.26 | 202.22 | 0.4325 | -491.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -20.69 | 34.46 | 9.90 | 204.84 | 0.3843 | 303.0 | 155.2 | |
| 0.72 | -25.00 | 0.40 | -25.00 | -23.60 | 34.57 | 10.00 | 201.98 | 0.4272 | -649.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.65 | 34.23 | 9.67 | 205.58 | 0.3677 | -993.0 | -860.2 | |
| 1.99 | -25.00 | 1.09 | -25.00 | -23.37 | 34.45 | 9.89 | 201.96 | 0.4231 | -647.0 | 999999 | |
| 16.72 | -25.00 | 9.17 | -25.00 | -23.87 | 34.42 | 9.86 | 201.43 | 0.4302 | -1031.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.59 | 34.15 | 9.59 | 204.29 | 0.3808 | -808.0 | -566.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -20.72 | 34.00 | 9.44 | 203.79 | 0.3817 | -908.0 | -647.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -21.86 | 34.01 | 9.44 | 202.57 | 0.3984 | 465.0 | 316.4 | |
| 1.72 | 2.62 | 0.92 | 1.41 | -20.98 | 33.92 | 9.35 | 203.32 | 0.3850 | -800.6 | -541.0 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -19.62 | 33.80 | 9.24 | 204.64 | 0.3643 | -868.0 | -675.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -20.88 | 33.68 | 9.12 | 202.90 | 0.3820 | -1014.0 | -815.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -23.57 | 33.82 | 9.26 | 200.53 | 0.4224 | -915.0 | -729.8 | |
| 8.05 | -25.00 | 4.37 | -25.00 | -22.98 | 33.75 | 9.19 | 200.92 | 0.4133 | -623.3 | 999999 | |
| 0.45 | 2.80 | 0.24 | 1.51 | -22.09 | 33.59 | 9.03 | 201.45 | 0.3993 | -1000.6 | -829.8 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -25.44 | 33.66 | 9.10 | 198.62 | 0.4490 | -810.0 | -562.7 | |
| 0.00 | 5.42 | 0.00 | 2.91 | -21.27 | 33.37 | 8.81 | 201.80 | 0.3859 | -816.0 | -757.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.41 | 33.44 | 8.88 | 199.90 | 0.4179 | -732.0 | -682.5 | |
| 0.00 | 4.61 | 0.00 | 2.49 | -22.19 | 33.26 | 8.70 | 200.65 | 0.3989 | -808.0 | -807.0 | |
| 0.00 | 3.89 | 0.00 | 2.09 | -21.60 | 33.19 | 8.63 | 201.08 | 0.3897 | -998.0 | -871.4 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -24.40 | 33.38 | 8.82 | 198.92 | 0.4323 | -877.0 | -701.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.94 | 33.10 | 8.54 | 202.61 | 0.3645 | -932.0 | -729.5 | |
| 0.00 | 4.88 | 0.00 | 2.64 | -22.81 | 32.84 | 8.27 | 199.16 | 0.4059 | -606.0 | -766.1 | |
| 0.00 | 3.80 | 0.00 | 2.04 | -21.96 | 32.72 | 8.16 | 199.68 | 0.3924 | -935.0 | -648.5 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -21.76 | 32.58 | 8.01 | 199.54 | 0.3887 | -945.0 | -749.5 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -23.80 | 32.66 | 8.10 | 197.96 | 0.4198 | -777.0 | -602.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -24.64 | 31.87 | 7.31 | 195.72 | 0.4287 | -506.0 | -427.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -21.73 | 30.73 | 6.16 | 195.32 | 0.3792 | -809.0 | -601.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.54 | 30.03 | 5.47 | 193.79 | 0.3733 | -688.0 | -547.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -24.77 | 29.93 | 5.36 | 191.61 | 0.4235 | -832.0 | -682.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -25.68 | 26.89 | 2.33 | 184.89 | 0.4308 | -740.0 | -597.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
