SDO HMI 2011-06-03 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.44 | 251.61 | 26.83 | 131.25 | 17.30 | 19.71 | -4.30 | 12.80 | 0.3149 | -435.5 | -312.0 | |
|
previous
or next observation for the same group /

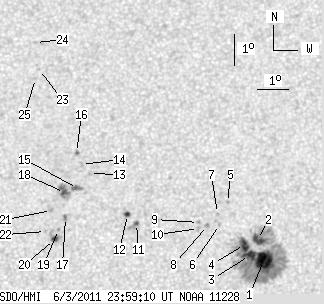

back to the solar disc SDO HMI 2011-06-03 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 192.21 | 10.37 | 99.77 | 16.65 | 21.18 | -2.83 | 9.18 | 0.2978 | -1319.4 | -519.7 | |
| 7.05 | -1.00 | 3.67 | -1.00 | 17.32 | 20.98 | -3.03 | 9.43 | 0.3094 | -986.8 | 999999 | |
| 6.69 | -1.00 | 3.48 | -1.00 | 16.81 | 20.73 | -3.28 | 10.49 | 0.3017 | -1143.5 | 999999 | |
| 6.87 | -1.00 | 3.58 | -1.00 | 17.16 | 20.57 | -3.44 | 10.78 | 0.3080 | -980.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.51 | 19.99 | -4.01 | 11.60 | 0.3317 | -770.0 | -657.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.80 | 19.75 | -4.25 | 12.76 | 0.3211 | -990.0 | -676.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.16 | 19.68 | -4.33 | 12.72 | 0.3271 | -755.0 | -543.8 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 17.77 | 19.37 | -4.64 | 13.89 | 0.3221 | -991.0 | -834.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.87 | 19.08 | -4.93 | 14.65 | 0.3248 | -781.0 | -612.3 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 17.68 | 19.09 | -4.92 | 14.79 | 0.3217 | -768.0 | -637.3 | |
| 1.72 | 6.06 | 0.90 | 3.18 | 17.84 | 17.09 | -6.92 | 20.16 | 0.3342 | -836.8 | -768.4 | |
| 2.35 | 3.07 | 1.24 | 1.62 | 18.13 | 16.79 | -7.22 | 20.64 | 0.3404 | -826.9 | -638.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 19.45 | 15.49 | -8.51 | 22.39 | 0.3681 | 801.0 | 615.6 | |
| 0.00 | 2.08 | 0.00 | 1.11 | 19.74 | 15.22 | -8.79 | 22.71 | 0.3742 | 654.0 | 608.0 | |
| 0.00 | 5.33 | 0.00 | 2.83 | 18.96 | 15.13 | -8.88 | 23.80 | 0.3633 | 928.0 | 786.1 | |
| 0.36 | 2.08 | 0.19 | 1.11 | 20.13 | 15.03 | -8.98 | 22.71 | 0.3811 | 837.0 | 690.8 | |
| 0.00 | 2.53 | 0.00 | 1.34 | 18.03 | 14.79 | -9.22 | 25.77 | 0.3519 | 1037.0 | 869.2 | |
| 3.35 | 13.20 | 1.78 | 7.02 | 18.84 | 14.71 | -9.30 | 24.94 | 0.3642 | 1122.3 | 799.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.65 | 14.58 | -9.43 | 26.78 | 0.3478 | 931.0 | 766.7 | |
| 3.07 | 7.59 | 1.62 | 4.01 | 17.33 | 14.47 | -9.54 | 27.50 | 0.3441 | 1030.2 | 790.8 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.26 | 14.32 | -9.69 | 26.59 | 0.3586 | 966.0 | 765.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.59 | 14.17 | -9.84 | 27.87 | 0.3501 | 656.0 | 550.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 22.85 | 13.62 | -10.39 | 22.86 | 0.4295 | 617.0 | 552.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 23.75 | 13.41 | -10.60 | 22.39 | 0.4436 | 628.0 | 480.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 22.56 | 13.51 | -10.50 | 23.38 | 0.4260 | 660.0 | 477.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
