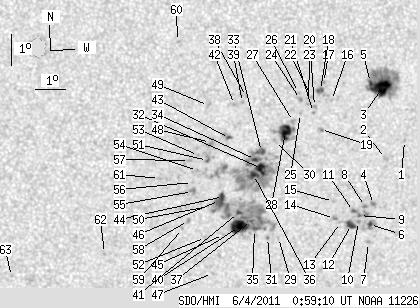

SDO HMI 2011-06-04 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.02 | 483.00 | 50.83 | 263.64 | -22.16 | 35.54 | 12.08 | 207.62 | 0.4223 | 200.2 | 151.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.09 | 39.74 | 16.28 | 216.45 | 0.4421 | 677.0 | 543.2 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -21.68 | 39.16 | 15.70 | 214.66 | 0.4440 | 786.0 | 486.0 | |
| 18.35 | 72.88 | 9.97 | 39.57 | -19.41 | 38.79 | 15.33 | 217.37 | 0.4126 | 1136.1 | 565.2 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -23.19 | 38.92 | 15.47 | 212.27 | 0.4610 | 883.0 | 722.8 | |
| 1.18 | -3.00 | 0.64 | -3.00 | -19.21 | 38.40 | 14.94 | 216.98 | 0.4065 | 1009.6 | 999999 | |
| 1.99 | 11.57 | 1.11 | 6.48 | -23.85 | 38.87 | 15.41 | 211.36 | 0.4689 | 882.3 | 591.7 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -24.45 | 38.90 | 15.45 | 210.70 | 0.4769 | 781.0 | 602.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -23.25 | 38.66 | 15.20 | 211.75 | 0.4596 | 985.0 | 903.6 | |
| 0.36 | 7.87 | 0.20 | 4.39 | -23.55 | 38.48 | 15.03 | 211.10 | 0.4620 | 1011.0 | 796.5 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -23.75 | 38.47 | 15.02 | 210.84 | 0.4645 | 909.0 | 717.5 | |
| 1.54 | -9.00 | 0.86 | -9.00 | -23.42 | 38.26 | 14.81 | 210.90 | 0.4586 | 913.5 | 999999 | |
| 4.88 | 6.24 | 2.73 | 3.49 | -23.85 | 38.24 | 14.79 | 210.35 | 0.4640 | 823.3 | 638.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.78 | 37.86 | 14.40 | 209.78 | 0.4601 | 687.0 | 536.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -23.65 | 37.64 | 14.18 | 209.57 | 0.4567 | 877.0 | 740.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -23.09 | 37.54 | 14.09 | 210.08 | 0.4486 | 875.0 | 666.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.79 | 37.15 | 13.70 | 213.79 | 0.4023 | 717.0 | 600.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.22 | 36.84 | 13.38 | 214.06 | 0.3920 | 982.0 | 733.7 | |
| 2.98 | 6.60 | 1.61 | 3.56 | -19.47 | 36.76 | 13.31 | 213.52 | 0.3946 | 986.6 | 711.3 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -20.73 | 36.87 | 13.42 | 211.92 | 0.4121 | 886.0 | 705.1 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -19.99 | 36.61 | 13.15 | 212.46 | 0.4000 | 932.0 | 704.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.18 | 36.59 | 13.13 | 212.15 | 0.4024 | 840.0 | 714.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -19.67 | 36.48 | 13.02 | 212.68 | 0.3947 | 721.0 | 673.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -19.89 | 36.40 | 12.94 | 212.19 | 0.3970 | 633.0 | 657.6 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -19.76 | 36.12 | 12.67 | 211.83 | 0.3929 | 879.0 | 700.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -20.22 | 36.16 | 12.70 | 211.27 | 0.3993 | 770.0 | 552.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -19.54 | 36.04 | 12.58 | 211.99 | 0.3892 | 665.0 | 544.0 | |
| 0.00 | 2.26 | 0.00 | 1.22 | -20.47 | 35.95 | 12.49 | 210.50 | 0.4010 | 917.0 | 723.2 | |
| 12.48 | 24.05 | 6.75 | 13.02 | -20.80 | 35.71 | 12.25 | 209.59 | 0.4035 | 1000.8 | 515.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -24.28 | 35.79 | 12.33 | 205.64 | 0.4518 | -655.0 | -558.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -21.12 | 35.37 | 11.91 | 208.50 | 0.4053 | 709.0 | 596.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -24.28 | 35.41 | 11.96 | 204.97 | 0.4493 | -769.0 | -703.3 | |
| 7.14 | 276.14 | 3.89 | 150.90 | -22.01 | 35.01 | 11.55 | 206.71 | 0.4148 | 1004.0 | 69.0 | |
| 4.61 | -32.00 | 2.50 | -32.00 | -21.45 | 34.96 | 11.51 | 207.28 | 0.4068 | 990.9 | 999999 | |
| 2.17 | -32.00 | 1.18 | -32.00 | -21.71 | 34.78 | 11.33 | 206.61 | 0.4091 | 1094.1 | 999999 | |
| 1.99 | -32.00 | 1.10 | -32.00 | -24.02 | 34.95 | 11.49 | 204.39 | 0.4426 | -432.7 | 999999 | |
| 4.61 | -32.00 | 2.51 | -32.00 | -22.20 | 34.76 | 11.30 | 205.99 | 0.4158 | 914.1 | 999999 | |
| 0.72 | -32.00 | 0.40 | -32.00 | -23.72 | 34.82 | 11.36 | 204.45 | 0.4375 | -428.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.67 | 34.33 | 10.88 | 208.24 | 0.3771 | -882.0 | -721.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.86 | 34.22 | 10.76 | 207.73 | 0.3789 | -899.0 | -748.8 | |
| 17.36 | -32.00 | 9.56 | -32.00 | -23.92 | 34.43 | 10.97 | 203.52 | 0.4379 | -1007.0 | 999999 | |
| 1.72 | -32.00 | 0.94 | -32.00 | -23.46 | 34.36 | 10.90 | 203.85 | 0.4308 | -808.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.93 | 33.96 | 10.50 | 207.08 | 0.3779 | -958.0 | -789.2 | |
| 0.36 | 3.89 | 0.19 | 2.09 | -21.03 | 33.87 | 10.41 | 205.54 | 0.3930 | -775.5 | -810.8 | |
| 0.72 | -32.00 | 0.39 | -32.00 | -22.93 | 33.81 | 10.35 | 203.32 | 0.4198 | 371.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -24.19 | 33.91 | 10.45 | 202.27 | 0.4385 | -640.0 | -555.7 | |
| 7.50 | -32.00 | 4.10 | -32.00 | -23.06 | 33.68 | 10.23 | 202.94 | 0.4209 | -526.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -25.49 | 33.65 | 10.19 | 200.60 | 0.4557 | -645.0 | -463.0 | |
| 0.00 | 5.06 | 0.00 | 2.72 | -21.16 | 33.25 | 9.79 | 204.06 | 0.3907 | -911.0 | -717.4 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -19.96 | 33.10 | 9.65 | 205.15 | 0.3723 | -934.0 | -714.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -23.26 | 33.33 | 9.87 | 202.04 | 0.4216 | -742.0 | -518.5 | |
| 0.36 | 5.61 | 0.20 | 3.02 | -21.75 | 33.19 | 9.73 | 203.29 | 0.3988 | -1005.5 | -827.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -24.29 | 33.31 | 9.85 | 201.03 | 0.4364 | -823.0 | -603.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.58 | 32.88 | 9.42 | 202.80 | 0.3945 | -922.0 | -786.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -22.07 | 32.88 | 9.42 | 202.29 | 0.4016 | -957.0 | -833.1 | |
| 0.00 | 3.89 | 0.00 | 2.11 | -22.76 | 32.76 | 9.30 | 201.35 | 0.4110 | -1024.0 | -860.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -22.47 | 32.74 | 9.28 | 201.60 | 0.4066 | -869.0 | -664.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -21.75 | 32.59 | 9.13 | 202.01 | 0.3951 | -878.0 | -736.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -23.72 | 32.69 | 9.24 | 200.33 | 0.4247 | -713.0 | -597.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -23.99 | 32.51 | 9.05 | 199.73 | 0.4276 | -692.0 | -519.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -17.91 | 31.98 | 8.53 | 205.07 | 0.3344 | -499.0 | -472.4 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -22.34 | 31.63 | 8.18 | 199.36 | 0.3984 | -640.0 | -524.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -24.82 | 29.93 | 6.47 | 193.88 | 0.4284 | -815.0 | -682.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -25.59 | 26.82 | 3.37 | 187.08 | 0.4314 | -736.0 | -587.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
