SDO HMI 2011-06-04 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.61 | 35.71 | 11.27 | 18.66 | -18.53 | 26.43 | 2.97 | 189.06 | 0.3184 | 449.8 | -188.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

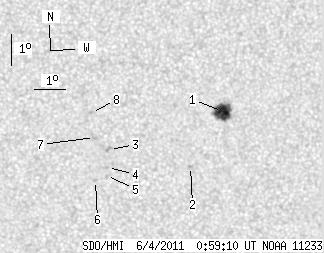

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.61 | 24.96 | 11.27 | 13.01 | -18.10 | 27.45 | 4.00 | 192.26 | 0.3132 | 1048.1 | 649.6 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -19.87 | 26.46 | 3.00 | 188.39 | 0.3390 | 718.0 | 532.2 | |
| 0.00 | 2.80 | 0.00 | 1.47 | -19.32 | 23.84 | 0.38 | 181.11 | 0.3264 | -847.0 | -819.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.90 | 23.77 | 0.32 | 180.89 | 0.3360 | -821.0 | -630.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -20.16 | 23.74 | 0.29 | 180.79 | 0.3402 | -458.0 | -453.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -20.32 | 23.39 | -0.07 | 179.81 | 0.3429 | -613.0 | -445.5 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -18.93 | 23.35 | -0.10 | 179.70 | 0.3199 | -750.0 | -641.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -18.13 | 23.26 | -0.20 | 179.39 | 0.3066 | -824.0 | -677.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
