SDO HMI 2011-06-04 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.01 | 261.09 | 26.57 | 136.03 | 17.35 | 19.83 | -3.07 | 9.12 | 0.3118 | -405.1 | -342.4 | |
|
previous
or next observation for the same group /

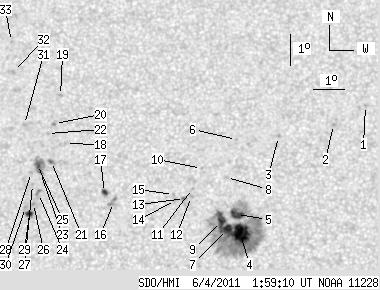

back to the solar disc SDO HMI 2011-06-04 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.80 | 25.21 | 2.30 | 354.05 | 0.3643 | -872.0 | -624.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.18 | 24.16 | 1.26 | 356.64 | 0.3528 | -964.0 | -711.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.79 | 22.38 | -0.52 | 1.43 | 0.3459 | -802.0 | -659.0 | |
| 21.61 | 195.33 | 11.20 | 101.29 | 16.68 | 21.18 | -1.72 | 5.61 | 0.2955 | -1312.6 | -523.9 | |
| 8.23 | -4.00 | 4.28 | -4.00 | 17.28 | 21.05 | -1.85 | 5.82 | 0.3058 | -1006.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 19.69 | 21.02 | -1.88 | 5.15 | 0.3456 | -694.0 | -525.5 | |
| 6.06 | -4.00 | 3.14 | -4.00 | 16.81 | 20.77 | -2.13 | 6.89 | 0.2984 | -1114.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.47 | 20.72 | -2.19 | 6.40 | 0.3260 | -701.0 | -524.9 | |
| 3.44 | -4.00 | 1.79 | -4.00 | 17.06 | 20.58 | -2.33 | 7.40 | 0.3030 | -1113.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 18.76 | 19.91 | -2.99 | 8.59 | 0.3325 | -715.0 | -538.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 18.12 | 19.63 | -3.27 | 9.72 | 0.3227 | -725.0 | -592.8 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 17.86 | 19.61 | -3.30 | 9.94 | 0.3186 | -828.0 | -658.1 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 17.80 | 19.38 | -3.52 | 10.64 | 0.3182 | -952.0 | -813.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 17.73 | 19.10 | -3.81 | 11.52 | 0.3181 | -752.0 | -684.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.92 | 19.03 | -3.88 | 11.59 | 0.3215 | -742.0 | -620.2 | |
| 0.00 | 6.15 | 0.00 | 3.22 | 17.67 | 17.11 | -5.79 | 17.27 | 0.3253 | -908.0 | -765.1 | |
| 2.53 | 3.80 | 1.33 | 1.99 | 17.99 | 16.81 | -6.09 | 17.79 | 0.3318 | -798.0 | -753.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 19.57 | 15.49 | -7.42 | 19.65 | 0.3633 | 768.0 | 548.7 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 21.13 | 15.25 | -7.66 | 18.75 | 0.3883 | 857.0 | 623.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 20.22 | 15.10 | -7.81 | 19.95 | 0.3753 | 854.0 | 705.5 | |
| 1.45 | 3.53 | 0.77 | 1.87 | 18.99 | 15.06 | -7.85 | 21.30 | 0.3569 | 789.8 | 717.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.89 | 14.88 | -8.02 | 20.77 | 0.3716 | 736.0 | 522.9 | |
| 1.27 | 13.75 | 0.67 | 7.29 | 18.63 | 14.72 | -8.18 | 22.53 | 0.3536 | 978.4 | 841.8 | |
| 0.00 | 3.98 | 0.00 | 2.10 | 17.96 | 14.69 | -8.22 | 23.41 | 0.3437 | 775.0 | 740.6 | |
| 3.26 | -23.00 | 1.73 | -23.00 | 18.89 | 14.61 | -8.29 | 22.50 | 0.3582 | 1040.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.64 | 14.54 | -8.36 | 24.18 | 0.3399 | 1086.0 | 884.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 18.25 | 14.48 | -8.43 | 23.58 | 0.3494 | 799.0 | 617.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 18.63 | 14.43 | -8.48 | 23.24 | 0.3555 | 876.0 | 767.7 | |
| 3.16 | 4.61 | 1.66 | 2.42 | 17.32 | 14.43 | -8.48 | 24.88 | 0.3360 | 1025.8 | 802.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.51 | 14.29 | -8.62 | 24.98 | 0.3398 | 917.0 | 759.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 20.19 | 14.12 | -8.79 | 22.24 | 0.3805 | 786.0 | 630.0 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 21.92 | 13.65 | -9.26 | 21.50 | 0.4089 | 776.0 | 628.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 22.91 | 13.51 | -9.39 | 20.84 | 0.4242 | 737.0 | 564.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
