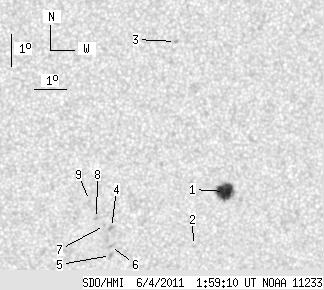

SDO HMI 2011-06-04 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.90 | 36.89 | 9.86 | 19.26 | -18.37 | 26.40 | 3.49 | 190.71 | 0.3173 | 386.8 | -51.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.90 | 25.32 | 9.86 | 13.22 | -18.12 | 27.45 | 4.54 | 193.85 | 0.3157 | 1103.5 | 691.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.86 | 26.49 | 3.58 | 189.99 | 0.3405 | 636.0 | 500.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -13.39 | 25.81 | 2.90 | 192.31 | 0.2320 | 785.0 | 667.5 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -19.28 | 23.83 | 0.93 | 182.70 | 0.3261 | -1088.0 | -863.9 | |
| 0.00 | 2.89 | 0.00 | 1.52 | -20.18 | 23.81 | 0.90 | 182.49 | 0.3410 | -736.0 | -548.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.89 | 23.80 | 0.90 | 182.53 | 0.3362 | -879.0 | -651.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -19.21 | 23.61 | 0.70 | 182.05 | 0.3249 | -987.0 | -809.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -18.99 | 23.35 | 0.44 | 181.31 | 0.3210 | -921.0 | -759.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -18.41 | 23.12 | 0.22 | 180.67 | 0.3114 | -782.0 | -640.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
