SDO HMI 2011-06-04 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.97 | 155.30 | 12.15 | 82.34 | -20.96 | 18.75 | -3.05 | 172.17 | 0.3580 | 713.8 | 434.1 | |
|
previous
or next observation for the same group /

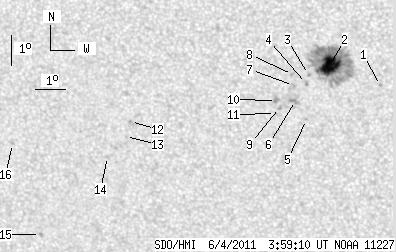

back to the solar disc SDO HMI 2011-06-04 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | -21.33 | 20.91 | -0.89 | 177.69 | 0.3602 | -824.0 | -620.8 | |
| 22.97 | 128.34 | 12.15 | 67.86 | -20.68 | 19.26 | -2.54 | 173.19 | 0.3517 | 1351.8 | 463.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.97 | 18.57 | -3.23 | 171.50 | 0.3580 | 845.0 | 687.6 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -21.27 | 18.50 | -3.31 | 171.45 | 0.3629 | 999.0 | 705.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -22.44 | 18.47 | -3.33 | 171.87 | 0.3818 | 692.0 | 579.5 | |
| 0.00 | 5.16 | 0.00 | 2.75 | -21.82 | 18.12 | -3.68 | 170.76 | 0.3727 | 879.0 | 720.0 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.33 | 18.07 | -3.73 | 170.39 | 0.3650 | 915.0 | 685.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -20.97 | 18.05 | -3.76 | 170.16 | 0.3593 | 814.0 | 675.4 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -22.05 | 17.59 | -4.21 | 169.58 | 0.3779 | 759.0 | 640.1 | |
| 0.00 | 3.17 | 0.00 | 1.69 | -21.82 | 17.50 | -4.30 | 169.23 | 0.3745 | 924.0 | 767.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -22.25 | 17.45 | -4.35 | 169.35 | 0.3814 | 613.0 | 404.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.51 | 12.64 | -9.17 | 158.70 | 0.4069 | -865.0 | -688.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -23.00 | 12.44 | -9.37 | 158.76 | 0.4153 | -594.0 | -550.5 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -23.66 | 11.78 | -10.02 | 158.08 | 0.4287 | -737.0 | -551.9 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -26.27 | 9.25 | -12.56 | 155.98 | 0.4810 | -751.0 | -604.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -23.23 | 8.61 | -13.20 | 151.67 | 0.4440 | -714.0 | -540.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
