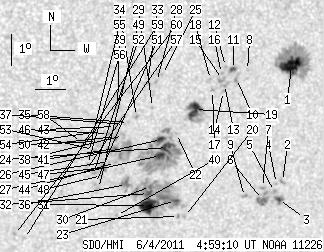

SDO HMI 2011-06-04 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.48 | 460.30 | 47.07 | 253.38 | -21.94 | 35.49 | 14.23 | 211.78 | 0.4369 | 93.7 | 100.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.71 | 85.38 | 11.38 | 46.91 | -19.37 | 38.77 | 17.51 | 221.00 | 0.4345 | 1190.6 | 447.5 | |
| 0.00 | 2.71 | 0.00 | 1.53 | -23.15 | 38.93 | 17.67 | 215.72 | 0.4800 | 852.0 | 660.0 | |
| 1.72 | 7.15 | 0.97 | 4.05 | -23.75 | 38.87 | 17.61 | 214.86 | 0.4866 | 911.3 | 647.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -23.22 | 38.73 | 17.47 | 215.33 | 0.4790 | 769.0 | 681.2 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -23.48 | 38.69 | 17.44 | 214.94 | 0.4819 | 930.0 | 779.1 | |
| 0.00 | 10.31 | 0.00 | 5.82 | -23.75 | 38.31 | 17.06 | 214.02 | 0.4818 | 967.0 | 811.5 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -23.35 | 38.26 | 17.00 | 214.45 | 0.4765 | 901.0 | 783.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.53 | 37.30 | 16.05 | 218.36 | 0.4215 | 687.0 | 611.3 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -23.65 | 37.68 | 16.42 | 213.17 | 0.4752 | 785.0 | 651.3 | |
| 0.00 | 3.35 | 0.00 | 1.83 | -19.79 | 36.96 | 15.70 | 217.37 | 0.4213 | 879.0 | 667.5 | |
| 2.26 | 3.17 | 1.23 | 1.72 | -19.50 | 36.83 | 15.57 | 217.60 | 0.4165 | 980.6 | 1016.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.40 | 36.55 | 15.30 | 217.26 | 0.4127 | 818.0 | 690.4 | |
| 0.00 | 3.89 | 0.00 | 2.12 | -19.99 | 36.57 | 15.32 | 216.41 | 0.4200 | 582.0 | 649.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.21 | 36.56 | 15.31 | 216.05 | 0.4227 | 826.0 | 559.9 | |
| 0.00 | 3.44 | 0.00 | 1.87 | -19.82 | 36.49 | 15.24 | 216.51 | 0.4173 | 723.0 | 810.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.63 | 36.44 | 15.18 | 216.72 | 0.4144 | 874.0 | 690.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.18 | 36.19 | 14.94 | 215.45 | 0.4189 | 802.0 | 651.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.82 | 36.09 | 14.83 | 215.80 | 0.4135 | 792.0 | 593.4 | |
| 13.66 | 26.50 | 7.46 | 14.48 | -20.80 | 35.65 | 14.39 | 213.59 | 0.4218 | 999.8 | 333.7 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -24.32 | 35.68 | 14.43 | 209.17 | 0.4677 | -635.0 | -539.7 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -24.32 | 35.48 | 14.22 | 208.83 | 0.4662 | -814.0 | -654.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -21.58 | 35.12 | 13.86 | 211.57 | 0.4274 | 663.0 | 483.0 | |
| 2.80 | 109.35 | 1.56 | 60.67 | -23.78 | 35.31 | 14.06 | 209.17 | 0.4579 | 694.5 | -108.8 | |
| 9.50 | 103.56 | 5.21 | 56.85 | -22.04 | 34.86 | 13.60 | 210.51 | 0.4313 | 955.6 | 353.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.66 | 34.48 | 13.22 | 213.03 | 0.3968 | -784.0 | -667.7 | |
| 3.80 | -24.00 | 2.08 | -24.00 | -21.77 | 34.63 | 13.38 | 210.43 | 0.4260 | 1004.2 | 999999 | |
| 5.34 | -24.00 | 2.93 | -24.00 | -22.30 | 34.65 | 13.39 | 209.79 | 0.4331 | 921.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -19.89 | 34.30 | 13.04 | 212.35 | 0.3982 | -885.0 | -729.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.73 | 34.24 | 12.98 | 211.06 | 0.4089 | -611.0 | -525.5 | |
| 1.72 | -23.00 | 0.95 | -23.00 | -23.32 | 34.41 | 13.16 | 208.14 | 0.4450 | -465.6 | 999999 | |
| 19.63 | -23.00 | 10.90 | -23.00 | -23.95 | 34.41 | 13.15 | 207.42 | 0.4535 | -974.0 | 999999 | |
| 3.71 | -23.00 | 2.05 | -23.00 | -23.55 | 34.37 | 13.11 | 207.80 | 0.4478 | -782.0 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -19.96 | 34.00 | 12.75 | 211.68 | 0.3966 | -910.0 | -713.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -21.03 | 33.73 | 12.47 | 209.69 | 0.4087 | -1024.0 | -786.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.22 | 33.48 | 12.22 | 208.95 | 0.4094 | -800.0 | -604.0 | |
| 0.00 | 9.95 | 0.00 | 5.48 | -23.26 | 33.59 | 12.34 | 206.73 | 0.4382 | -397.0 | -313.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -21.29 | 33.35 | 12.09 | 208.61 | 0.4093 | -885.0 | -744.7 | |
| 0.00 | 2.89 | 0.00 | 1.57 | -21.65 | 33.35 | 12.09 | 208.16 | 0.4142 | -461.0 | -565.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -20.77 | 33.07 | 11.82 | 208.73 | 0.4001 | -839.0 | -626.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -24.28 | 33.35 | 12.09 | 205.18 | 0.4507 | -805.0 | -682.7 | |
| 0.63 | 26.59 | 0.35 | 14.51 | -22.07 | 33.11 | 11.86 | 207.20 | 0.4184 | -975.6 | -513.9 | |
| 0.00 | 3.89 | 0.00 | 2.11 | -21.68 | 33.08 | 11.82 | 207.60 | 0.4127 | -894.0 | -869.0 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -21.35 | 33.05 | 11.80 | 207.95 | 0.4080 | -831.0 | -734.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.53 | 33.15 | 11.90 | 206.74 | 0.4251 | -789.0 | -707.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -22.50 | 32.95 | 11.69 | 206.38 | 0.4231 | -770.0 | -614.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -21.58 | 32.84 | 11.58 | 207.24 | 0.4096 | -953.0 | -786.1 | |
| 0.00 | 2.98 | 0.00 | 1.63 | -22.70 | 32.76 | 11.51 | 205.80 | 0.4246 | -1012.0 | -932.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -22.96 | 32.72 | 11.46 | 205.43 | 0.4280 | -790.0 | -651.9 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -23.39 | 32.65 | 11.40 | 204.84 | 0.4336 | -732.0 | -609.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -21.84 | 32.49 | 11.24 | 206.24 | 0.4108 | -820.0 | -793.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -23.22 | 32.54 | 11.28 | 204.80 | 0.4305 | -667.0 | -608.7 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -22.86 | 32.44 | 11.19 | 205.00 | 0.4247 | -631.0 | -574.8 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -22.10 | 32.38 | 11.12 | 205.72 | 0.4137 | -585.0 | -597.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.55 | 32.34 | 11.08 | 206.27 | 0.4055 | -784.0 | -609.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -22.20 | 32.22 | 10.96 | 205.29 | 0.4139 | -648.0 | -587.4 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -22.60 | 32.22 | 10.96 | 204.85 | 0.4195 | -757.0 | -531.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.79 | 32.17 | 10.91 | 204.54 | 0.4220 | -157.0 | -223.5 | |
| 0.00 | 3.80 | 0.00 | 2.06 | -21.88 | 31.96 | 10.70 | 205.13 | 0.4075 | -647.0 | -625.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -25.05 | 30.28 | 9.03 | 198.76 | 0.4437 | -665.0 | -426.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.92 | 29.93 | 8.68 | 198.19 | 0.4400 | -838.0 | -618.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
