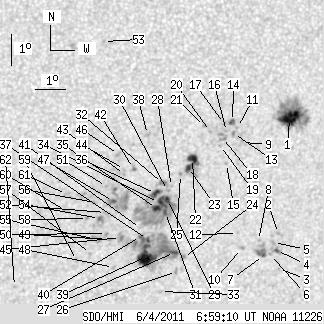

SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.53 | 436.61 | 41.29 | 241.69 | -22.04 | 35.42 | 15.26 | 213.38 | 0.4469 | 171.0 | 130.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.37 | 76.16 | 9.60 | 42.11 | -19.39 | 38.76 | 18.60 | 222.59 | 0.4463 | 1190.2 | 492.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.14 | 38.87 | 18.71 | 217.23 | 0.4896 | 917.0 | 701.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -24.30 | 39.05 | 18.89 | 215.94 | 0.5046 | 529.0 | 418.2 | |
| 1.63 | 5.43 | 0.93 | 3.09 | -23.70 | 38.88 | 18.72 | 216.49 | 0.4962 | 836.7 | 629.7 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -23.44 | 38.74 | 18.58 | 216.64 | 0.4918 | 740.0 | 626.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -23.84 | 38.69 | 18.53 | 216.05 | 0.4960 | 597.0 | 515.2 | |
| 1.18 | 10.58 | 0.67 | 6.01 | -23.87 | 38.45 | 18.29 | 215.67 | 0.4943 | 711.2 | 807.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -23.37 | 38.21 | 18.05 | 215.96 | 0.4862 | 957.0 | 757.3 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -20.17 | 37.28 | 17.12 | 219.11 | 0.4399 | 643.0 | 509.6 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -23.64 | 37.65 | 17.49 | 214.80 | 0.4844 | 816.0 | 748.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.68 | 37.03 | 16.87 | 219.45 | 0.4317 | 725.0 | 609.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -23.14 | 37.44 | 17.28 | 215.13 | 0.4767 | 696.0 | 559.0 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -19.88 | 36.91 | 16.75 | 218.97 | 0.4328 | 876.0 | 650.0 | |
| 2.89 | 3.71 | 1.58 | 2.03 | -19.49 | 36.84 | 16.68 | 219.45 | 0.4275 | 979.6 | 813.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -20.85 | 36.78 | 16.62 | 217.29 | 0.4431 | 668.0 | 561.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.81 | 36.67 | 16.51 | 218.67 | 0.4296 | 977.0 | 814.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.56 | 36.57 | 16.41 | 218.92 | 0.4257 | 927.0 | 748.5 | |
| 0.00 | 5.61 | 0.00 | 3.08 | -20.01 | 36.55 | 16.39 | 218.18 | 0.4308 | 559.0 | 734.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.27 | 36.51 | 16.36 | 217.72 | 0.4335 | 677.0 | 548.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.81 | 36.13 | 15.97 | 217.77 | 0.4244 | 791.0 | 673.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.65 | 35.91 | 15.75 | 217.65 | 0.4203 | 705.0 | 595.8 | |
| 6.51 | 19.09 | 3.57 | 10.48 | -20.69 | 35.61 | 15.45 | 215.59 | 0.4302 | 1016.9 | 513.8 | |
| 2.53 | -22.00 | 1.39 | -22.00 | -20.98 | 35.51 | 15.35 | 214.99 | 0.4329 | 1000.6 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.57 | -23.94 | 35.68 | 15.52 | 211.38 | 0.4716 | 398.0 | 364.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.21 | 35.26 | 15.10 | 214.24 | 0.4335 | 747.0 | 602.8 | |
| 0.00 | 2.44 | 0.00 | 1.37 | -24.41 | 35.49 | 15.33 | 210.53 | 0.4761 | -646.0 | -553.0 | |
| 2.89 | 108.45 | 1.62 | 60.44 | -23.77 | 35.35 | 15.19 | 211.04 | 0.4668 | 775.6 | -115.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.60 | 35.00 | 14.84 | 213.25 | 0.4362 | 586.0 | 406.2 | |
| 1.72 | 99.41 | 0.95 | 54.86 | -22.03 | 34.91 | 14.75 | 212.52 | 0.4408 | 904.5 | 315.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -21.73 | 34.88 | 14.72 | 212.86 | 0.4368 | 717.0 | 606.6 | |
| 1.72 | -29.00 | 0.95 | -29.00 | -22.45 | 34.89 | 14.73 | 211.93 | 0.4461 | 435.5 | 999999 | |
| 0.00 | 5.97 | 0.00 | 3.28 | -21.50 | 34.69 | 14.53 | 212.83 | 0.4322 | 983.0 | 792.5 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -25.08 | 35.02 | 14.86 | 209.00 | 0.4811 | -559.0 | -481.0 | |
| 0.45 | -29.00 | 0.25 | -29.00 | -22.13 | 34.62 | 14.46 | 211.88 | 0.4396 | 1056.2 | 999999 | |
| 3.80 | -29.00 | 2.10 | -29.00 | -22.32 | 34.57 | 14.41 | 211.55 | 0.4418 | 966.7 | 999999 | |
| 4.97 | -29.00 | 2.73 | -29.00 | -21.83 | 34.48 | 14.32 | 212.04 | 0.4347 | 967.9 | 999999 | |
| 2.08 | -27.00 | 1.16 | -27.00 | -23.34 | 34.37 | 14.21 | 209.94 | 0.4535 | -559.0 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.57 | -19.91 | 34.03 | 13.87 | 213.88 | 0.4060 | -876.0 | -653.3 | |
| 21.35 | -27.00 | 11.91 | -27.00 | -23.91 | 34.40 | 14.24 | 209.32 | 0.4612 | -960.0 | 999999 | |
| 0.27 | -27.00 | 0.15 | -27.00 | -23.25 | 34.12 | 13.96 | 209.63 | 0.4503 | 754.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -22.98 | 34.09 | 13.93 | 209.90 | 0.4466 | 80.0 | 78.5 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -21.02 | 33.66 | 13.50 | 211.64 | 0.4172 | -1003.0 | -775.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.21 | 33.38 | 13.22 | 210.85 | 0.4174 | -947.0 | -752.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.05 | 33.36 | 13.20 | 211.04 | 0.4152 | -815.0 | -705.7 | |
| 0.00 | 3.89 | 0.00 | 2.15 | -23.28 | 33.44 | 13.28 | 208.40 | 0.4456 | -341.0 | -322.2 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -20.56 | 33.12 | 12.96 | 211.24 | 0.4067 | -853.0 | -773.4 | |
| 1.54 | 24.78 | 0.84 | 13.58 | -22.09 | 33.09 | 12.93 | 209.19 | 0.4270 | -931.2 | -505.9 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -24.27 | 33.31 | 13.15 | 207.04 | 0.4580 | -670.0 | -596.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.35 | 33.11 | 12.95 | 207.73 | 0.4440 | -816.0 | -670.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -23.15 | 32.96 | 12.80 | 207.68 | 0.4402 | -802.0 | -653.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.60 | 32.81 | 12.65 | 209.27 | 0.4182 | -992.0 | -889.7 | |
| 0.00 | 2.53 | 0.00 | 1.39 | -22.46 | 32.86 | 12.70 | 208.31 | 0.4301 | -505.0 | -634.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -16.94 | 32.35 | 12.19 | 215.21 | 0.3519 | -812.0 | -698.0 | |
| 1.63 | 6.60 | 0.89 | 3.63 | -22.65 | 32.67 | 12.51 | 207.73 | 0.4314 | -976.3 | -805.8 | |
| 0.00 | 4.07 | 0.00 | 2.24 | -23.35 | 32.63 | 12.48 | 206.87 | 0.4406 | -367.0 | -645.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -22.13 | 32.45 | 12.30 | 207.95 | 0.4226 | -910.0 | -699.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -23.81 | 32.48 | 12.32 | 206.07 | 0.4459 | -670.0 | -516.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -22.65 | 32.27 | 12.11 | 206.98 | 0.4284 | -756.0 | -631.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -24.04 | 32.02 | 11.86 | 205.00 | 0.4460 | -799.0 | -528.0 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -22.42 | 31.54 | 11.38 | 205.85 | 0.4201 | -531.0 | -470.4 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -21.87 | 31.49 | 11.33 | 206.40 | 0.4120 | -828.0 | -624.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -24.91 | 29.99 | 9.83 | 200.40 | 0.4460 | -624.0 | -499.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
