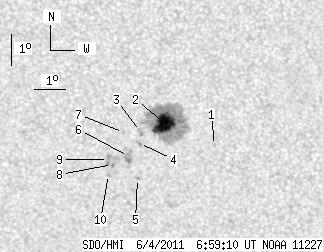

SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.14 | 149.06 | 14.34 | 78.86 | -20.81 | 19.12 | -1.04 | 177.26 | 0.3523 | 1068.0 | 483.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.38 | 20.93 | 0.77 | 181.99 | 0.3613 | -790.0 | -612.4 | |
| 27.14 | 125.82 | 14.34 | 66.48 | -20.66 | 19.30 | -0.86 | 177.69 | 0.3496 | 1351.7 | 442.5 | |
| 0.00 | 3.26 | 0.00 | 1.72 | -20.92 | 18.52 | -1.64 | 175.65 | 0.3546 | 531.0 | 570.6 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -21.32 | 18.48 | -1.68 | 175.65 | 0.3610 | 885.0 | 648.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.46 | 18.40 | -1.76 | 175.70 | 0.3797 | 727.0 | 605.9 | |
| 0.00 | 7.78 | 0.00 | 4.14 | -21.74 | 18.12 | -2.04 | 174.82 | 0.3684 | 862.0 | 814.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.96 | 17.96 | -2.20 | 174.21 | 0.3559 | 821.0 | 625.3 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -22.00 | 17.59 | -2.57 | 173.57 | 0.3735 | 875.0 | 728.2 | |
| 0.00 | 4.07 | 0.00 | 2.17 | -21.84 | 17.46 | -2.70 | 173.20 | 0.3711 | 896.0 | 737.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -22.33 | 17.45 | -2.71 | 173.34 | 0.3791 | 736.0 | 586.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
