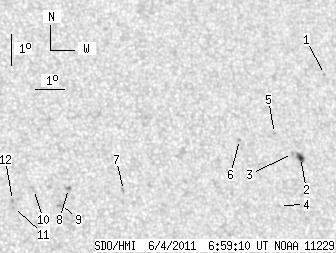

SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.53 | 22.97 | 2.03 | 12.83 | 17.44 | 41.04 | 20.88 | 312.45 | 0.4587 | 35.3 | 169.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.59 | 20.62 | 46.63 | 26.47 | 310.53 | 0.5510 | 765.0 | 628.5 | |
| 3.53 | 5.61 | 2.03 | 3.23 | 17.93 | 45.31 | 25.15 | 307.70 | 0.5131 | -853.7 | -666.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 18.06 | 45.05 | 24.89 | 308.19 | 0.5111 | -855.0 | -706.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.40 | 44.36 | 24.20 | 306.13 | 0.4888 | -834.0 | -649.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.70 | 44.51 | 24.35 | 309.79 | 0.5103 | -688.0 | -567.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.51 | 43.25 | 23.10 | 310.89 | 0.4940 | -810.0 | -651.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 16.86 | 39.08 | 18.92 | 313.55 | 0.4300 | 617.0 | 515.4 | |
| 0.00 | 2.26 | 0.00 | 1.23 | 16.92 | 37.25 | 17.09 | 316.48 | 0.4100 | 874.0 | 702.8 | |
| 0.00 | 3.62 | 0.00 | 1.96 | 16.41 | 36.94 | 16.78 | 316.08 | 0.4009 | 860.0 | 741.0 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 16.89 | 36.08 | 15.92 | 318.38 | 0.3970 | 552.0 | 461.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.32 | 35.38 | 15.22 | 318.62 | 0.3827 | 850.0 | 742.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.54 | 35.36 | 15.20 | 319.05 | 0.3852 | 862.0 | 717.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
