SDO HMI 2011-06-04 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.88 | 145.18 | 12.62 | 76.78 | -20.83 | 19.14 | -0.47 | 178.76 | 0.3524 | 1095.1 | 513.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

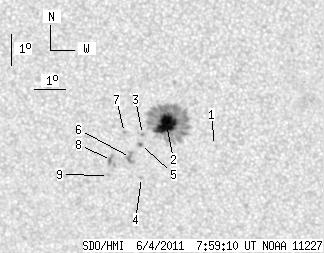

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.38 | -21.37 | 20.87 | 1.26 | 183.27 | 0.3616 | -485.0 | -469.2 | |
| 22.70 | 125.28 | 12.00 | 66.19 | -20.69 | 19.31 | -0.30 | 179.18 | 0.3499 | 1361.8 | 478.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -21.01 | 18.53 | -1.09 | 177.13 | 0.3556 | 961.0 | 684.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.42 | 18.48 | -1.13 | 177.23 | 0.3785 | 750.0 | 567.6 | |
| 1.18 | 1.63 | 0.62 | 0.86 | -21.34 | 18.46 | -1.15 | 177.01 | 0.3610 | 656.7 | 715.8 | |
| 0.00 | 6.69 | 0.00 | 3.56 | -21.76 | 18.13 | -1.49 | 176.23 | 0.3682 | 1001.0 | 813.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -20.95 | 17.94 | -1.67 | 175.58 | 0.3551 | 882.0 | 674.5 | |
| 0.00 | 5.70 | 0.00 | 3.04 | -21.86 | 17.50 | -2.11 | 174.69 | 0.3706 | 920.0 | 785.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.35 | 17.40 | -2.22 | 174.56 | 0.3787 | 708.0 | 590.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
