SDO HMI 2011-06-04 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.81 | 31.84 | 9.88 | 16.75 | -18.59 | 26.57 | 6.96 | 200.09 | 0.3368 | 510.0 | -128.4 | |
|
previous
or next observation for the same group /

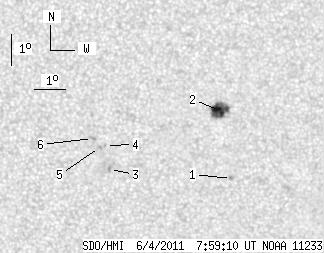

back to the solar disc SDO HMI 2011-06-04 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.16 | -20.33 | 27.93 | 8.32 | 201.61 | 0.3700 | 809.0 | 676.6 | |
| 18.81 | 22.16 | 9.88 | 11.64 | -18.14 | 27.43 | 7.82 | 202.88 | 0.3340 | 1065.2 | 740.6 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -20.04 | 23.94 | 4.33 | 191.86 | 0.3466 | -820.0 | -691.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.27 | 23.79 | 4.18 | 191.96 | 0.3336 | -897.0 | -706.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -19.33 | 23.60 | 3.99 | 191.38 | 0.3340 | -982.0 | -766.2 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -19.04 | 23.37 | 3.76 | 190.91 | 0.3286 | -1045.0 | -805.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
