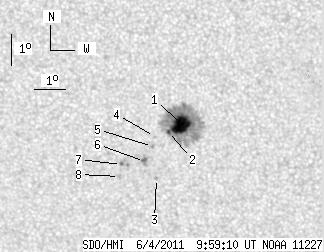

SDO HMI 2011-06-04 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.88 | 141.56 | 13.16 | 74.87 | -20.81 | 19.15 | 0.63 | 181.72 | 0.3521 | 1197.9 | 494.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.34 | 125.27 | 11.81 | 66.20 | -20.65 | 19.35 | 0.83 | 182.24 | 0.3495 | 1391.6 | 460.7 | |
| 1.36 | -1.00 | 0.72 | -1.00 | -20.87 | 18.93 | 0.41 | 181.09 | 0.3531 | 776.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -22.41 | 18.54 | 0.02 | 180.05 | 0.3781 | 828.0 | 599.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.04 | 18.47 | -0.04 | 179.88 | 0.3557 | 738.0 | 564.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -21.36 | 18.41 | -0.11 | 179.71 | 0.3610 | 952.0 | 690.1 | |
| 0.00 | 4.07 | 0.00 | 2.17 | -21.85 | 18.14 | -0.37 | 179.06 | 0.3691 | 958.0 | 880.2 | |
| 1.18 | 5.88 | 0.63 | 3.13 | -21.95 | 17.39 | -1.13 | 177.17 | 0.3711 | 742.8 | 770.6 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -22.34 | 17.32 | -1.20 | 177.06 | 0.3775 | 815.0 | 523.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
