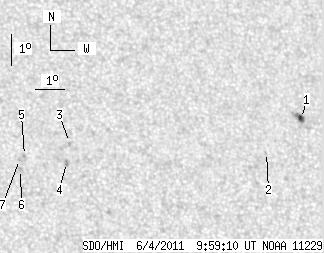

SDO HMI 2011-06-04 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 16.73 | 2.17 | 9.42 | 17.17 | 40.66 | 22.15 | 310.44 | 0.4708 | 181.6 | 189.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 7.42 | 2.17 | 4.33 | 17.89 | 45.26 | 26.75 | 306.03 | 0.5317 | -783.7 | -652.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 16.80 | 43.85 | 25.34 | 305.62 | 0.5060 | -660.0 | -580.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.10 | 37.13 | 18.61 | 314.40 | 0.4287 | 751.0 | 674.4 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 16.46 | 36.96 | 18.45 | 313.52 | 0.4202 | 781.0 | 741.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 16.68 | 35.58 | 17.07 | 316.07 | 0.4069 | 796.0 | 641.3 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 16.24 | 35.41 | 16.89 | 315.55 | 0.4001 | 738.0 | 565.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 16.56 | 35.41 | 16.89 | 316.13 | 0.4035 | 778.0 | 583.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
