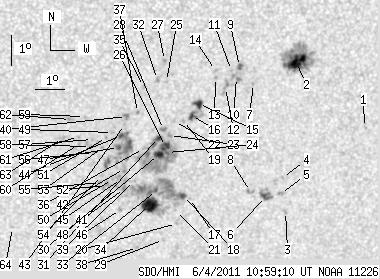

SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.72 | 437.51 | 39.08 | 244.64 | -22.09 | 35.17 | 17.20 | 216.39 | 0.4650 | 52.2 | 40.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.47 | 41.49 | 23.52 | 225.76 | 0.5205 | 544.0 | 470.2 | |
| 15.10 | 68.01 | 8.47 | 38.12 | -19.37 | 38.79 | 20.82 | 225.70 | 0.4703 | 1202.7 | 523.0 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -24.25 | 39.15 | 21.18 | 219.04 | 0.5252 | 803.0 | 577.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.12 | 38.85 | 20.89 | 220.18 | 0.5102 | 805.0 | 605.1 | |
| 0.00 | 2.89 | 0.00 | 1.67 | -23.65 | 38.87 | 20.90 | 219.48 | 0.5160 | 969.0 | 645.8 | |
| 4.34 | 11.49 | 2.50 | 6.61 | -23.75 | 38.35 | 20.39 | 218.68 | 0.5122 | 740.4 | 759.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.05 | 37.39 | 19.43 | 222.72 | 0.4624 | 851.0 | 639.2 | |
| 0.00 | 3.26 | 0.00 | 1.87 | -23.58 | 37.80 | 19.83 | 218.16 | 0.5052 | 664.0 | 698.8 | |
| 2.89 | 3.07 | 1.60 | 1.70 | -19.50 | 36.85 | 18.88 | 222.81 | 0.4507 | 932.5 | 792.0 | |
| 0.00 | 6.78 | 0.00 | 3.77 | -19.86 | 36.79 | 18.82 | 222.16 | 0.4539 | 776.0 | 771.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.63 | 36.59 | 18.62 | 222.23 | 0.4494 | 900.0 | 666.7 | |
| 0.00 | 5.43 | 0.00 | 3.01 | -20.18 | 36.45 | 18.48 | 221.16 | 0.4540 | 715.0 | 672.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.86 | 36.07 | 18.10 | 221.09 | 0.4465 | 753.0 | 661.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -19.63 | 36.04 | 18.08 | 221.41 | 0.4437 | 766.0 | 606.0 | |
| 5.25 | 17.36 | 2.91 | 9.64 | -20.70 | 35.59 | 17.62 | 219.07 | 0.4512 | 974.6 | 503.4 | |
| 2.98 | -15.00 | 1.66 | -15.00 | -21.09 | 35.40 | 17.43 | 218.19 | 0.4539 | 900.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -23.82 | 35.69 | 17.72 | 214.89 | 0.4888 | 648.0 | 504.4 | |
| 2.53 | 106.45 | 1.43 | 59.96 | -23.72 | 35.47 | 17.50 | 214.69 | 0.4857 | 869.6 | -141.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -21.25 | 35.15 | 17.18 | 217.56 | 0.4534 | 688.0 | 499.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.65 | 35.35 | 17.39 | 213.35 | 0.4960 | -688.0 | -547.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -24.22 | 35.26 | 17.29 | 213.74 | 0.4899 | -468.0 | -357.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.29 | 34.84 | 16.88 | 217.04 | 0.4509 | 642.0 | 483.9 | |
| 0.00 | 2.35 | 0.00 | 1.31 | -21.74 | 34.73 | 16.76 | 216.21 | 0.4553 | 782.0 | 681.1 | |
| 0.99 | 87.91 | 0.56 | 49.02 | -22.30 | 34.73 | 16.76 | 215.43 | 0.4620 | 778.9 | 300.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.99 | 34.43 | 16.46 | 218.29 | 0.4314 | -728.0 | -584.3 | |
| 5.61 | -24.00 | 3.12 | -24.00 | -22.10 | 34.63 | 16.67 | 215.56 | 0.4588 | 1008.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.31 | 34.29 | 16.32 | 219.12 | 0.4220 | -885.0 | -648.5 | |
| 0.00 | 3.17 | 0.00 | 1.75 | -21.55 | 34.50 | 16.53 | 216.12 | 0.4508 | 1007.0 | 829.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -25.19 | 34.98 | 17.01 | 212.15 | 0.4994 | -747.0 | -528.8 | |
| 5.16 | -24.00 | 2.87 | -24.00 | -22.37 | 34.43 | 16.46 | 214.87 | 0.4601 | 920.8 | 999999 | |
| 2.89 | -24.00 | 1.61 | -24.00 | -21.81 | 34.36 | 16.39 | 215.53 | 0.4527 | 926.8 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.39 | -19.92 | 34.12 | 16.15 | 217.88 | 0.4276 | -938.0 | -764.2 | |
| 1.45 | -18.00 | 0.81 | -18.00 | -23.55 | 34.51 | 16.54 | 213.44 | 0.4754 | -787.8 | 999999 | |
| 16.82 | -18.00 | 9.49 | -18.00 | -24.02 | 34.33 | 16.36 | 212.58 | 0.4797 | -993.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -20.15 | 33.67 | 15.70 | 216.78 | 0.4261 | -738.0 | -631.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.17 | 33.89 | 15.92 | 214.27 | 0.4530 | 443.0 | 340.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.99 | 33.55 | 15.59 | 215.35 | 0.4354 | -792.0 | -694.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -25.46 | 34.10 | 16.13 | 210.53 | 0.4958 | -676.0 | -506.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.22 | 33.71 | 15.74 | 212.60 | 0.4646 | 422.0 | 357.7 | |
| 0.00 | 3.53 | 0.00 | 1.94 | -21.12 | 33.20 | 15.23 | 214.55 | 0.4338 | -1090.0 | -910.4 | |
| 0.00 | 2.53 | 0.00 | 1.42 | -23.49 | 33.39 | 15.43 | 211.76 | 0.4653 | -43.0 | -200.8 | |
| 0.00 | 4.34 | 0.00 | 2.41 | -22.83 | 33.32 | 15.35 | 212.47 | 0.4563 | -265.0 | -287.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -21.38 | 33.16 | 15.19 | 214.12 | 0.4367 | -882.0 | -724.4 | |
| 1.81 | 42.51 | 1.00 | 23.52 | -21.74 | 33.09 | 15.12 | 213.52 | 0.4407 | -968.2 | -585.7 | |
| 0.00 | 6.87 | 0.00 | 3.83 | -23.16 | 33.25 | 15.28 | 211.94 | 0.4600 | -249.0 | -400.7 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -24.19 | 33.34 | 15.37 | 210.83 | 0.4738 | -788.0 | -686.8 | |
| 1.90 | -44.00 | 1.05 | -44.00 | -22.14 | 33.03 | 15.07 | 212.89 | 0.4452 | -944.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -23.46 | 33.15 | 15.18 | 211.40 | 0.4629 | -579.0 | -633.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.65 | 32.78 | 14.81 | 213.11 | 0.4367 | -1029.0 | -888.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -23.19 | 32.95 | 14.98 | 211.40 | 0.4579 | -884.0 | -673.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.81 | 32.59 | 14.62 | 212.57 | 0.4372 | -907.0 | -742.5 | |
| 0.00 | 4.70 | 0.00 | 2.62 | -23.39 | 32.73 | 14.76 | 210.79 | 0.4587 | -807.0 | -696.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -22.14 | 32.49 | 14.52 | 211.96 | 0.4406 | -878.0 | -663.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -23.06 | 32.56 | 14.59 | 210.91 | 0.4530 | -580.0 | -584.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -23.29 | 32.55 | 14.58 | 210.61 | 0.4560 | -895.0 | -700.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.30 | 32.20 | 14.23 | 211.25 | 0.4403 | -759.0 | -595.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.88 | 32.12 | 14.16 | 211.66 | 0.4342 | -917.0 | -762.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.11 | 32.08 | 14.11 | 211.29 | 0.4368 | -734.0 | -667.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.13 | 31.78 | 13.81 | 212.04 | 0.4215 | -478.0 | -502.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.04 | 31.67 | 13.70 | 210.64 | 0.4326 | -733.0 | -571.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.78 | 31.64 | 13.67 | 210.93 | 0.4289 | -803.0 | -604.9 | |
| 0.00 | 2.44 | 0.00 | 1.33 | -21.22 | 31.32 | 13.35 | 211.06 | 0.4189 | -873.0 | -746.8 | |
| 0.00 | 3.44 | 0.00 | 1.88 | -21.84 | 31.11 | 13.14 | 209.87 | 0.4255 | -749.0 | -670.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -24.79 | 29.69 | 11.73 | 203.98 | 0.4558 | -742.0 | -582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
