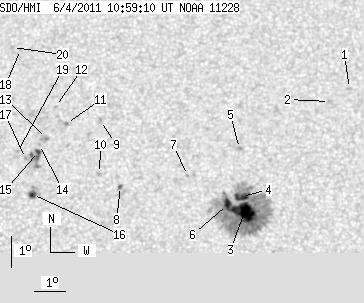

SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.21 | 251.87 | 24.53 | 131.05 | 17.26 | 20.12 | 2.15 | 353.03 | 0.3075 | -507.8 | -299.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.06 | 20.73 | 24.63 | 6.67 | 343.16 | 0.3763 | -801.0 | -620.1 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 20.30 | 23.96 | 5.99 | 344.44 | 0.3667 | -918.0 | -613.8 | |
| 26.23 | 204.66 | 13.61 | 106.22 | 16.77 | 21.13 | 3.16 | 349.79 | 0.2994 | -1348.3 | -473.0 | |
| 8.59 | -3.00 | 4.47 | -3.00 | 17.24 | 21.04 | 3.08 | 350.35 | 0.3070 | -903.1 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.71 | 18.78 | 21.01 | 3.04 | 351.27 | 0.3321 | -842.0 | -691.5 | |
| 5.06 | -3.00 | 2.63 | -3.00 | 16.99 | 20.59 | 2.63 | 351.61 | 0.3016 | -1109.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 17.91 | 19.33 | 1.36 | 355.87 | 0.3146 | -901.0 | -695.5 | |
| 1.54 | 1.63 | 0.80 | 0.85 | 17.56 | 17.19 | -0.78 | 2.42 | 0.3082 | -826.8 | -613.0 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 19.69 | 16.53 | -1.44 | 3.95 | 0.3440 | 901.0 | 661.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.98 | 16.52 | -1.45 | 4.40 | 0.3158 | -773.0 | -650.8 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 19.59 | 15.44 | -2.53 | 6.98 | 0.3441 | 816.0 | 727.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.14 | 15.07 | -2.90 | 7.74 | 0.3538 | 795.0 | 578.5 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 19.10 | 14.80 | -3.17 | 8.94 | 0.3376 | 1048.0 | 810.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 18.91 | 14.58 | -3.39 | 9.66 | 0.3351 | 716.0 | 526.3 | |
| 2.08 | 13.38 | 1.09 | 7.02 | 18.69 | 14.55 | -3.42 | 9.86 | 0.3315 | 955.0 | 907.4 | |
| 3.71 | 8.86 | 1.93 | 4.62 | 17.31 | 14.38 | -3.58 | 11.16 | 0.3095 | 1116.8 | 708.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.46 | 14.14 | -3.83 | 11.16 | 0.3291 | 927.0 | 769.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 22.00 | 13.88 | -4.09 | 9.88 | 0.3867 | 791.0 | 650.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 18.69 | 13.87 | -4.09 | 11.75 | 0.3336 | 776.0 | 557.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 22.07 | 13.62 | -4.35 | 10.47 | 0.3885 | 669.0 | 547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
