SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.37 | 29.21 | 8.11 | 15.41 | -18.63 | 26.46 | 8.49 | 203.93 | 0.3470 | 456.0 | -47.9 | |
|
previous
or next observation for the same group /

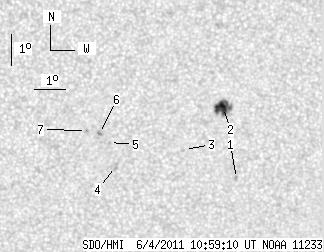

back to the solar disc SDO HMI 2011-06-04 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.11 | -20.41 | 27.97 | 10.00 | 205.31 | 0.3822 | 840.0 | 670.2 | |
| 15.37 | 19.35 | 8.11 | 10.21 | -18.13 | 27.40 | 9.44 | 206.95 | 0.3452 | 1052.6 | 729.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -19.48 | 26.21 | 8.24 | 202.35 | 0.3569 | 363.0 | 440.7 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -20.03 | 23.99 | 6.02 | 196.26 | 0.3533 | -549.0 | -616.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -19.25 | 23.76 | 5.79 | 196.34 | 0.3401 | -803.0 | -631.9 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -18.96 | 23.43 | 5.46 | 195.70 | 0.3340 | -1155.0 | -845.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.87 | 23.01 | 5.04 | 194.62 | 0.3307 | -799.0 | -596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
