SDO HMI 2011-06-04 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.41 | 0.00 | 6.12 | 19.58 | 6.86 | -10.56 | 26.78 | 0.3833 | -513.0 | -273.4 | |
|
previous
or next observation for the same group /

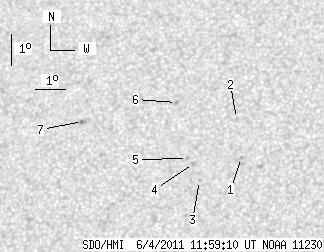

back to the solar disc SDO HMI 2011-06-04 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.67 | 19.08 | 9.11 | -8.31 | 22.39 | 0.3601 | -802.0 | -543.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 20.34 | 8.88 | -8.54 | 21.57 | 0.3804 | -612.0 | -480.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 18.34 | 7.78 | -9.63 | 26.45 | 0.3582 | -796.0 | -654.3 | |
| 0.00 | 2.62 | 0.00 | 1.40 | 18.88 | 7.56 | -9.86 | 26.27 | 0.3677 | -712.0 | -665.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.05 | 7.35 | -10.07 | 26.53 | 0.3716 | -799.0 | -590.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 20.86 | 6.87 | -10.55 | 25.37 | 0.4010 | -778.0 | -620.7 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 20.25 | 3.80 | -13.62 | 32.22 | 0.4162 | 908.0 | 767.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
