SDO HMI 2011-06-04 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.83 | 29.11 | 8.36 | 15.38 | -18.52 | 26.47 | 9.05 | 205.48 | 0.3490 | 536.3 | 128.3 | |
|
previous
or next observation for the same group /

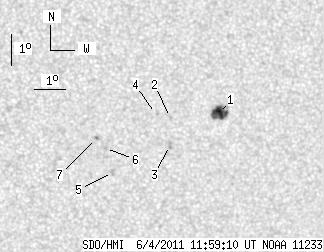

back to the solar disc SDO HMI 2011-06-04 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.83 | 19.08 | 8.36 | 10.08 | -18.16 | 27.38 | 9.96 | 208.17 | 0.3497 | 1012.0 | 721.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.29 | 25.80 | 8.38 | 204.11 | 0.3401 | 795.0 | 525.9 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -19.19 | 25.81 | 8.39 | 203.05 | 0.3535 | 804.0 | 711.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -18.16 | 25.31 | 7.89 | 203.02 | 0.3349 | 287.0 | 372.3 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -20.06 | 23.99 | 6.57 | 197.64 | 0.3565 | -755.0 | -636.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.28 | 23.73 | 6.32 | 197.69 | 0.3431 | -863.0 | -651.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.96 | 23.43 | 6.01 | 197.19 | 0.3366 | -1027.0 | -880.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
