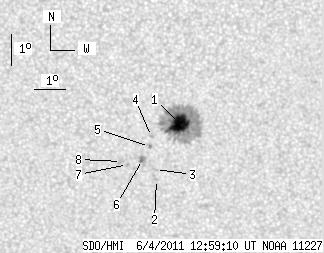

SDO HMI 2011-06-04 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 136.46 | 12.10 | 72.23 | -20.75 | 19.24 | 2.37 | 186.34 | 0.3533 | 1164.7 | 481.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 123.43 | 12.10 | 65.29 | -20.64 | 19.36 | 2.49 | 186.67 | 0.3517 | 1369.8 | 454.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.47 | 18.63 | 1.76 | 184.31 | 0.3802 | 667.0 | 505.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -22.14 | 18.60 | 1.73 | 184.29 | 0.3749 | 769.0 | 600.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.06 | 18.45 | 1.58 | 184.16 | 0.3572 | 676.0 | 526.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -21.39 | 18.39 | 1.52 | 183.93 | 0.3624 | 944.0 | 683.4 | |
| 0.00 | 3.80 | 0.00 | 2.02 | -21.81 | 18.17 | 1.30 | 183.28 | 0.3691 | 1040.0 | 913.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -21.98 | 17.68 | 0.81 | 182.03 | 0.3714 | 865.0 | 727.8 | |
| 0.00 | 2.44 | 0.00 | 1.30 | -21.88 | 17.48 | 0.61 | 181.54 | 0.3697 | 710.0 | 552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
