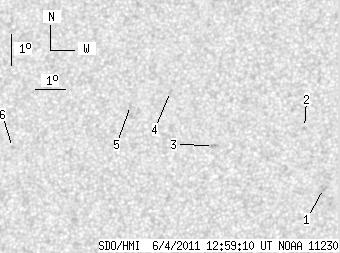

SDO HMI 2011-06-04 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.77 | 0.00 | 5.32 | 20.32 | 3.92 | -12.95 | 30.32 | 0.4131 | -53.7 | 21.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-04 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.80 | 0.00 | 1.49 | 18.88 | 7.56 | -9.31 | 24.99 | 0.3638 | -932.0 | -608.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 20.86 | 6.81 | -10.05 | 24.34 | 0.3976 | -789.0 | -618.0 | |
| 0.00 | 2.53 | 0.00 | 1.38 | 20.28 | 3.84 | -13.03 | 31.05 | 0.4116 | 787.0 | 757.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 22.05 | 2.23 | -14.64 | 31.66 | 0.4481 | 666.0 | 553.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 21.59 | 0.92 | -15.95 | 34.45 | 0.4535 | 660.0 | 562.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 20.23 | 357.05 | -19.82 | 42.26 | 0.4750 | -714.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
